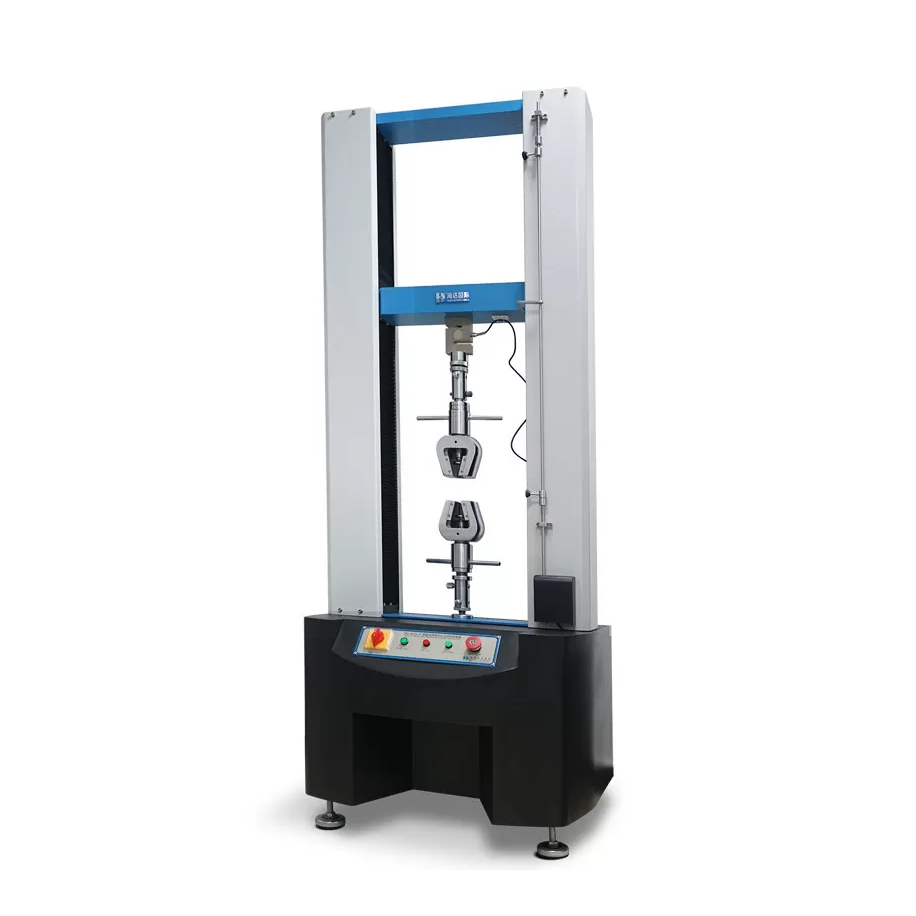

HAIDA HD-B615S Tensile Strength Testing Machine With Panasonic Servo Motor (100KN)

Max. Force: 10T (100KN)

Load cell: Germany brand load cell for high accuracy

Control system: PC with windows 7 system

Motor: Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T etc

Stroke: 1100mm including fixture

Load cell Resolution: 1/250,000

Load Precision: within ±0.5%

Test speed: 0.01~300mm/min (adjustable)

Software: TM 2101

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
