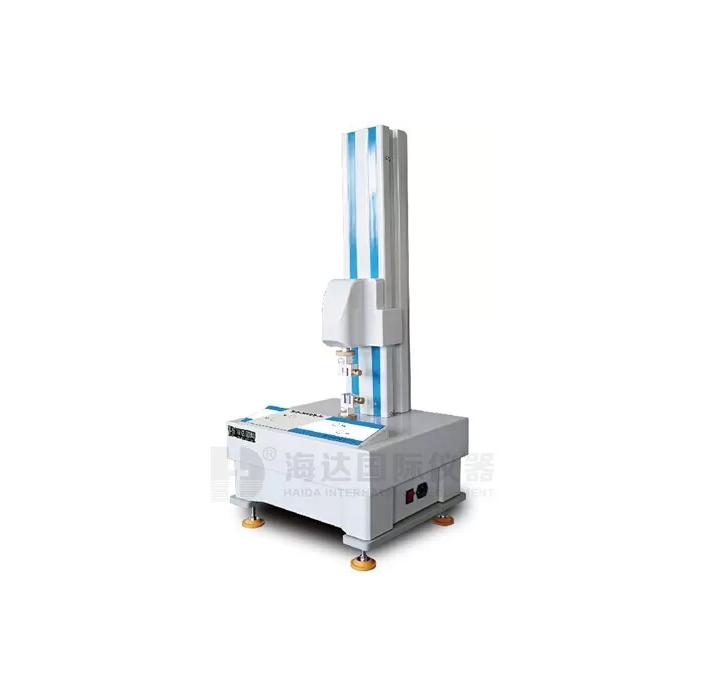

HAIDA HD-B609-D Adhesive Tape Tensile Testing Machine (2~25kg)

Force range: 2~25kg

Load cell: Germany brand load cell for high accuracy

Control system: LCD / PC with windows 7 system

Stroke: 300 mm (Without clamps)

Motor: Servo motor

Force reading: kgf, Ibf, N, KN, T etc

Load cell Resolution: 1/250,000

Load Precision: within ±0.5%

Test speed: 0.1~300mm/min (adjustable)

Machine size: 520 * 515 *1250 mm (L*W*H))

Weight: 30 kg

Power: 1 phase, AC, 220V

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

Datasheet
