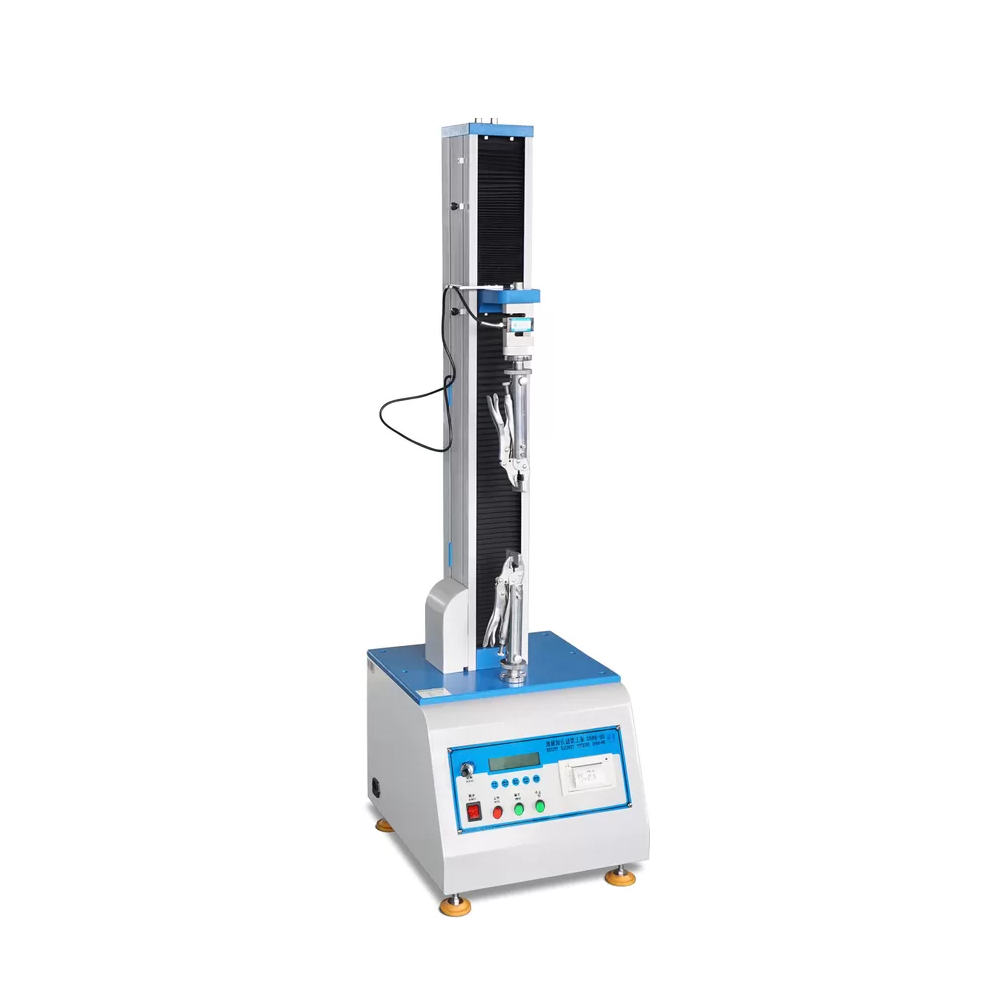

HAIDA HD-B602 Bend / Peel / Tensile Strength Tester (2KN)

Max. Force: 200 kg (2KN)

Load cell: China brand load cell

Control system: Controller with LED

Printing: Built-in Printer

Motor: AC Motor, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T etc

Stroke: 900mm including fixture

Load cell Resolution: 1/100,000

Load Precision: within ±0.5%

Test speed: 20~300mm/min (adjustable)

Data display: Max. break force

Safety features:

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

Packaging Dimensions: (W*D*H) 600*550*1500mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 65kg

Optional Accessories:

Clamps:

Tape/Film/Paper Tear Clamp (50kg)

180&90 Degree Peel Clamp (50kg)

Datasheet
