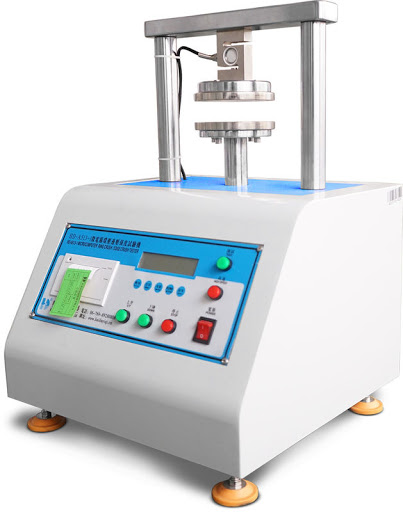

HAIDA HD-A513 Paper Crushing Strength Testing Instrument (200kg, 1/250.000)

The main technical parameters are as follows:
Capacity (Optional): 10, 20, 50, 100, 200 kg
Resolution: 1/250,000
Precision: < 0.25%
Operation Mode: Computer
Display Mode: LCD
Platen: 100×100 mm or depending on the diameter of the flat crush sample
Compressed Space: 500 mm
Platen Parallelism: ± 0.05 mm
Ring Crush Sample: 152×12.7 mm
Edge Crush Sample: 25×100 mm
Test Speed: 12.7 mm/min
Dimension (L×W×H): 790×510×1060 mm
Weight: Approx. 51 kg
Power: AC220V, 1.5A

Specifications
1.Computer Servo.
2.Multi-function.
3.Ring crush & edge compressive.

Equipment description:
Paper Crushing Strength Testing Instrument is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. Record the value of force,automatically keep the maximum value of fracture strength, decomposition degrees has improved 100 times than the needle display type. This equipment is important to control the quality product.

Corresponding standard: IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465

Applicable industry:
Paper Crushing Strength Testing Instrument applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
