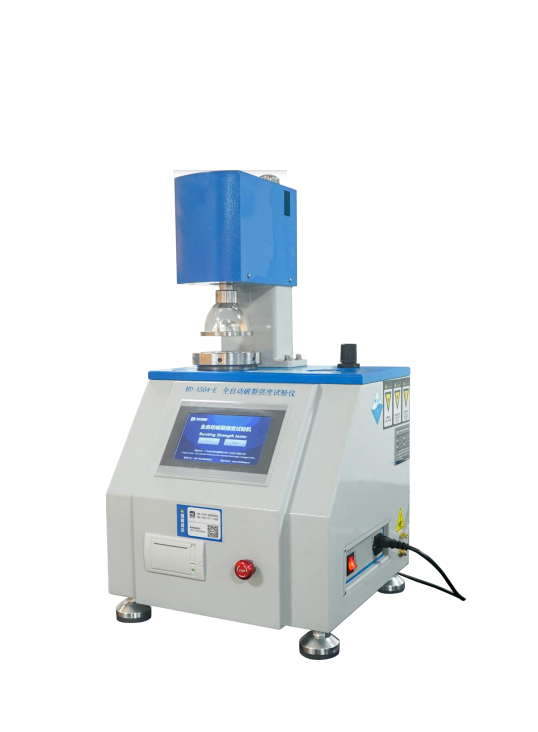

HAIDA HD-A504-E Bursting Strength Test Machine

Capacity: 5~45 kgf/cm^2(0.1kgf/cm^2) (for paperboard testing)

Clamping Force: 600~1200 KPа

Unit: kPa, Lbs/in², kgf/cm²

Resolution: 0.1kPa

Sensing Method: Pressure Transmitter

Operation Method: Touch Screen Control

Ring Material: Stainless Steel SUS304

Inner diameter of clamp ring: upper clamp ring: Φ30.5±0.1mmlower clamp ring: Φ33.1±0.1mmMaximum Stroke 25mm (without clamp)

Maximum Loading Force: 5000kPa

Pressurization Speed: 95±5ml/min

Dimension: 400mmx380mmx750mm(approx.) (L×W×H)

Weight: Appro. 50kg

Hydraulic Oil: 100% silicone oil

Required Air Source ≥0.6Mpa (provide by customer self)

Accessories: 1pcs higher pressure rubber film, one piece wrench, 10pcs higher pressure correction sheet, one bottle silicon oil, one piece English user manual
