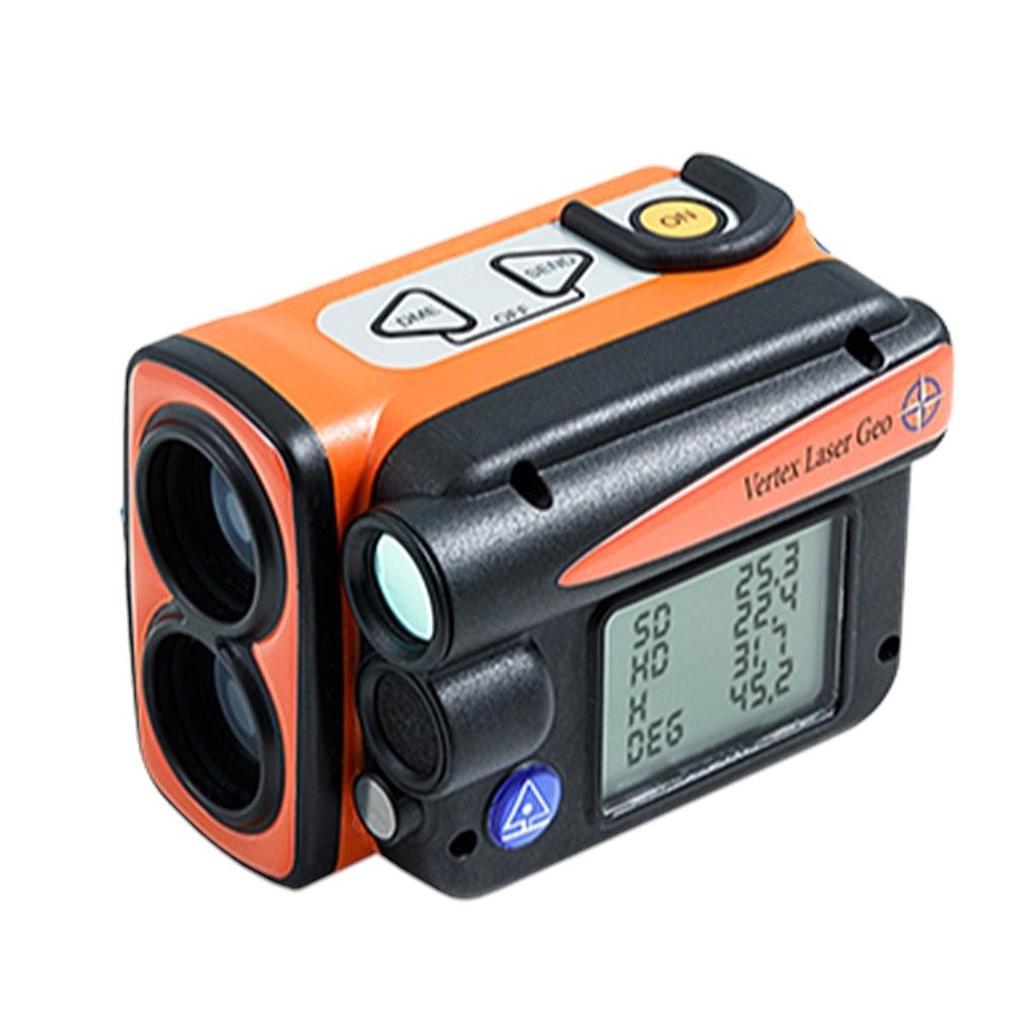

HAGLOF 15-103-1103 Vertex Laser Geo Rangefinder

Applications: Azimuth, Missing Line (Distance Between Two Remote Points), Slope Distance, Horizontal Distance, Height, Actual Distance, Angle, Vertical Separation, Three-point Measurement (Height Between Two Points)

General

Weight: 243 g/8.6oz.

Color: Orange

Dimensions: 93x63x72mm/3.7x2.5x2.8”

Protection Class: MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001).

Operating Temperature: -20° to +45° C/ -4°F-113°F

Units of Measure: Metric or Inch

Laser Classification: class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001)

Accuracy

Distance to Near Targets: ±0.1-foot

Inclination: 0.10 typical

Azimuth: 0-360 °, resolution 0,1 °, accuracy <1.5 RSME °.

Range

Maximum: 999 m/ft

Minimum: 0 m/ft

Angle: -90° - 90°

Battery/Power

Power Source: Li-ion battery (built-in)

Display/Finder

Type: External Graphic LCD 100x60pixles. Internal Heads-up display

Backlight: Yes

Communication

Bluetooth: Yes

Features

Tilt-Sensor (Inclinometer): Yes
