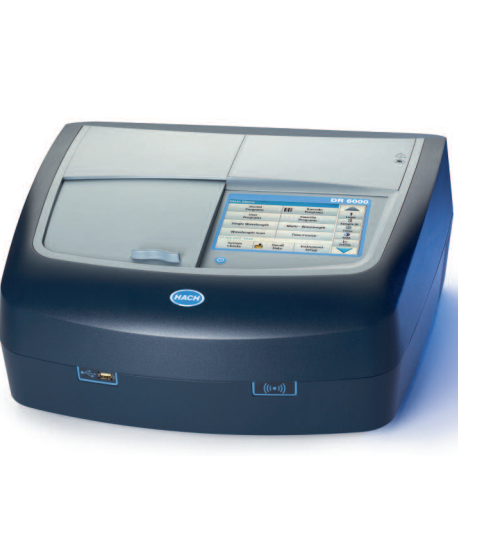

HACH DR6000 Benchtop Spectrophotometer (± 3.0 Abs,190~1100 Nm)

Operating Mode: Transmittance (%), Absorbance, Concentration

Source Lamp: Tungsten (visible range), deuterium (UV range)

Wavelength Range: 190 - 1100 nm

Wavelength Accuracy: ± 1 nm

Wavelength Selection: Automatic, based on method selection

Wavelength Reproducibility: < 0.1 nm

Wavelength Resolution: 0.1 nm

Spectral bandwidth: 2 nm

Photometric Measuring Range: ± 3 Abs

Photometric Accuracy : 5 mAbs at 0.0-0.5 Abs <1% at 0.5-2.0 Abs at 546 nm

Photometric Linearity: 0.005 - 2 Abs ≤ 0.01 at > 2 Abs with neutral glass at 546 nm

Stray Light : KI-solution at 220 nm < 3.3 Abs/ < 0.05%

Display: TFT 7 inch WVGA color touch

Data Logger: 5000 data points (result, date, time, sample-ID, user-ID)

Preprogrammed Methods: > 250

User Programs: 200

Sample Cell Compatibility: Rectangular: 10, 20, 30, 50 mm, 1 inch; round: 13 mm, 16 mm, 1 inch. Optional 100 mm rectangular cell with additional adapter

Dimensions (H x W x D): 8.5 in x 19.7 in x 18.1 in (215 mm x 500 mm x 460 mm)

Weight : 24.25 lbs. (11 kg)

Operating Conditions: 10 to 40 °C (50 - 104 °F), max. 80% relative humidity (non-condensing)

Storage Conditions -30 to 60 °C (-22 to 140 °F), 80% relative humidity (non-condensing)

Enclosure Rating: IP20

Interfaces: USB type A (2), USB type B, Ethernet, RFID module

Datasheet

manual

Features:

The UV-VIS spectrophotometer DR6000 delivers top performance for both routine laboratory tasks and demanding photometry applications. This system is designed for the effective work in professional laboratories. Intelligent software supports the lab manager in the calibration routine, quality assurance and development of customized application.

DR6000 offers high speed wavelength scanning across the UV and Visible Spectrum, and comes with over 250 pre-programmed methods, which include the most common testing methods used today. With optional accessories allowing for high volume testing via a carousel sample changer, and increased accuracy with a sample delivery system which eliminates optical difference errors, this instrument ensures you are ready to handle your wide-ranging water testing needs.
