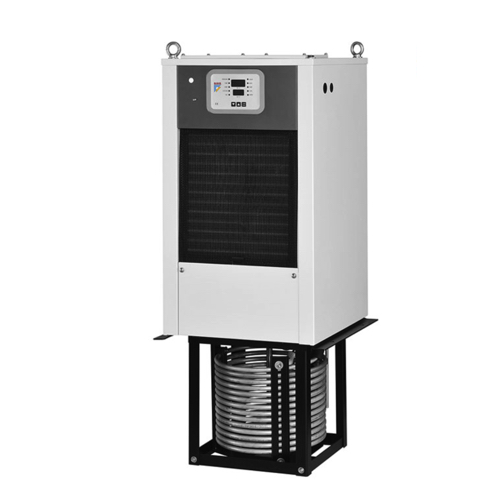

Habor HK-3RS Cutting/ Grinding Liquid Chiller (7500/9000 KCAL/H; 8700/10500 W; 30000/36000 BTU/H)

Cooling capacity:

KCAL/H 50/60Hz: 7500/9000

W 50/60Hz: 8700/10500

BTU/H 50/60Hz: 30000/36000

Temperature controller:

A: Fixed temperature control type (setting range 10-40 °C)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range -9.9~+9.9°C)

Use range:

Ambient temperature °C: 10-40°C (Standard)

Oil temperature °C: 10-45°C

Power source: 3Ø 200-230V 50/60Hz

Motor (W):

Compressor: 3690

Fan: 560

Mixing motor (Optional): 60W 4P

Applicable liquid: Cutting oil, grinding oil, water-soluble liquid, water

Applicable oil viscosity: 0.5~200 cSt

Dimension WxDxH (mm): 810x750x920

Weight (KG): 178

Noise level: Below 80 dB(A)
