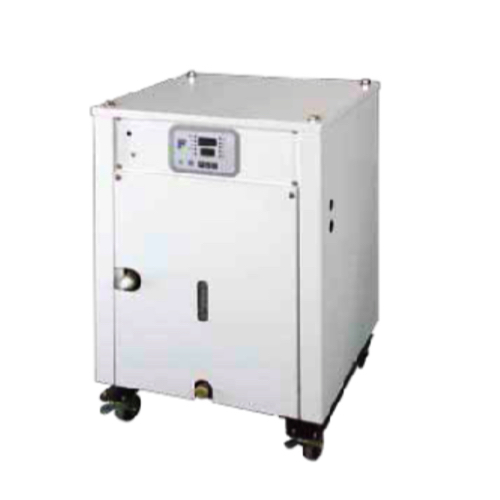

Habor HEW-2RPTS Water Chiller (6000 KCAL/H; 7000 W; 24000 BTU/H)

Cooling capacity

KCAL/H 50/60Hz: 6000

W 50/60Hz: 7000

BTU/H 50/60Hz: 24000

Temperature controller

A: Fixed temperature control type (setting range: 10 - 40 °C)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range: -9.9 to +9.9 °C)

Power source: 3Ø 200-230V 50/60Hz

Pump

W: 750

Max. flow rate (L/min): 50

Max. liquid lift (m): 40

Min. flow requirement of cooling water (L/min): 40

Piping Diameter (PT)

Liquid inlet: 3/4"

Liquid outlet: 3/4"

Cooling water inlet: 3/4"

Cooling water outlet: 3/4"

Water tank capacity: 45L

Dimension WxDxH (mm): 490 x 500 x 795

Weight (KG): 98

Noise level: Below 80 dB(A)
