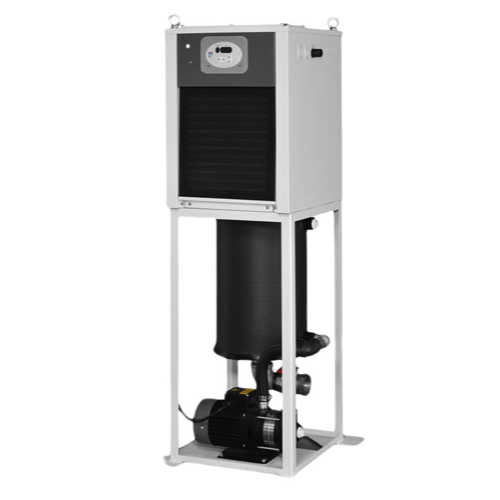

Habor HE-2RS EDM Liquid Cooler (5000/6000 KCAL/H; 5820/6980 W; 20000/24000 BTU/H)

Cooling capacity:

KCAL/H 50/60Hz: 5000/6000

W 50/60Hz: 5820/6980

BTU/H 50/60Hz: 20000/24000

Temperature controller:

A: Fixed temperature control type (setting range 10-40 °C)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range -9.9~+9.9°C)

Use range:

Ambient temperature °C: 10-40°C (Standard)

Oil temperature °C: 10-45°C

Power source: 3Ø 200-230V 50/60Hz

Motor (W):

Compressor: 2480

Fan: 350

Piping diameter:

Inlet: PT 1"

Outlet: PT 1"

Dimension WxDxH (mm): 500x770x1295

Weight (KG): 120

Noise level: Below 80 dB(A)

Datasheet
