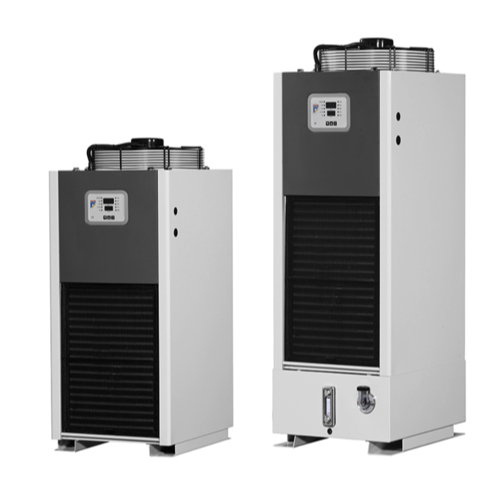

Habor HBO-2RPS Oil Chiller (5000/6000 KCAL/H; 5820/6980 W; 20000/24000 BTU/H)

Cooling capacity:

KCAL/H 50/60Hz: 5000/6000

W 50/60Hz: 5820/6980

BTU/H 50/60Hz: 20000/24000

Temperature controller:

A: Fixed temperature control type (setting range 10~40 ºC)

B: Differential temperature control type (tracing ambient/machine body temperature, setting range -9.9~+9.9℃)

Use range:

Ambient temperature ℃: 10~40℃ (Standard)

Oil temperature ℃: 10~45℃

Power source: 3Ø 200~230V 50/60Hz

Max. pressure loss (kgf/cm²): 3.0

Oil viscosity: Hydraulic oil, lubrication oil 4-300 cSt

Tank capacity (optional): 35L

Dimension (WxDxH, mm):

Without tank: 500x770x1295

With tank: 500x770x1295

Weight (KG):

Without tank: 176

With tank: 179

Noise level: Below 80 dB(A)
