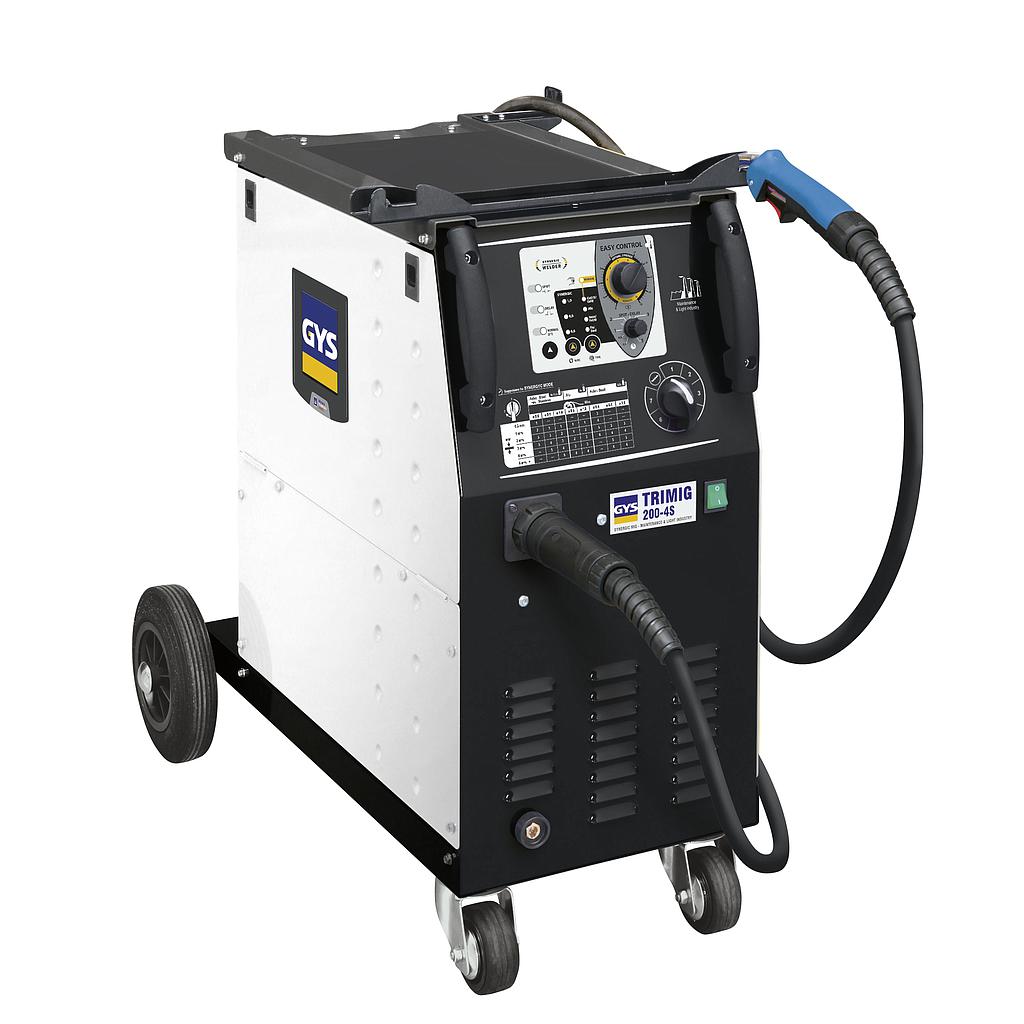

GYS TRIMIG 200-4S MIG/MAG Welding Machine (3ph; 400V; 30-200A; No Regulator)

The TRIMIG 200-4S is a « synergic » three phase welding unit, ideal for maintenance and locksmith work. It can weld steel, stainless, aluminium, and it is particularly suitable for intensive professional work up to ø1.

PRODUCT

In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.

3 FUNCTIONS AVAILABLE

- Normal

- Spot: Spot welding with adjustable spot diameter

- Delay: « Chain spot » function (Spot welding with time adjustment between 2 spots).

SYNERGIC MODE FOR EASY AND QUICK SETTINGS

- With this function, the wire speed setting is Automatic.

Simply select:

• the wire type

• the wire ø

• the power

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 10A

Rate current output: 30-200 A

Duty cycle (environment temp. at 40°C):

- Imax 30-200 A

140 A / 21 V @ 60%

120 A / 20 V @ 100%

Motor speed: 1 - 15 m/min- 4 rollers (2 motors)

Supported wire reels: Ø200-300 mm

Wire diameter:

+Steel, inox: 0.6 - 1 mm

+Aluminum: 0.8 - 1 mm

+CuSi / CuAl: 0.8 - 1 mm

Voltage positions switch: 7

No-load voltage: 17-34.5 V

Protection level: IP 21

Dimensions (L x w x h): 77 x 79 x 47 cm

Weight: 63 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - B (Steel, inox)

Included accessories: Torch TOPARC MIG 250A - 3 m + Earth clamp with cable 250 A - 2 m, 25 mm²

Optional accessories: Torch MB25 kit (250A) - 041233
