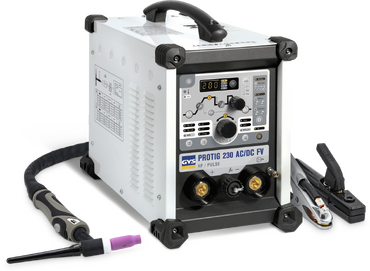

GYS PROTIG 230 AC/DC FV HF Single Phase AC/DC Tig

OPTIMISED TIG WELDING SETTINGS

SPOT mode (AC or DC TIG): for fast and accurate spot welding before working on thin sheet metal.

Two ignition types: HF contactless or HF contact for electrosensitive environments.

Three types of trigger control: 2T, 4T and 4T LOG.

Automatic torch detection: compatible with trigger and double-button torches.

MMA WELDING

Standard MMA: basic and rutile electrodes (up to Ø 4 mm).

Pulsed MMA: enables vertical-up welding (for pipes and pipelines, etc.).

Three built-in welding aids:

Anti-Stick: minimises the chance of the electrode sticking to the workpiece.

Adjustable Hot Start: makes ignition much easier and can be adjusted in seconds depending on the type of metal.

Arc Force: a one-off current boost for resolving difficult welding situations.

MAXIMUM PRODUCTIVITY

Stores up to 30 programs per welding process.

Access to an advanced menu for maximum welding control.

Current and voltage display both during and after the welding process (DMOS/QMOS).

Reinforced bodywork and anti-shock pads.

Space-saving and easy to move around the site.

Its smart ventilation system reduces power consumption, dust intake and noise levels.

Surge-protected up to 400 V (PROTEC 400).
