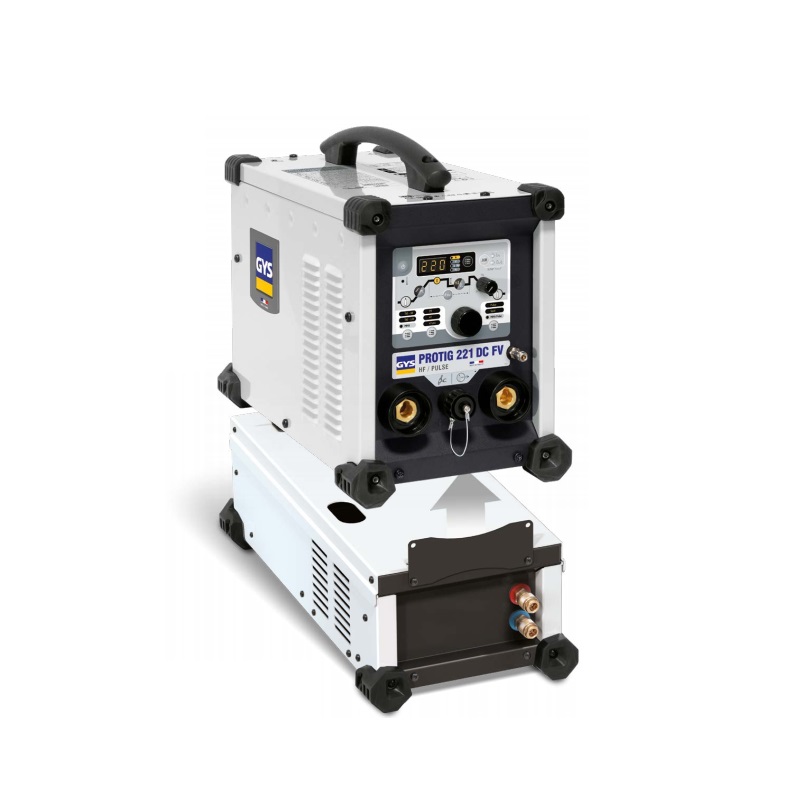

GYS PROTIG 221 DC FV TIG (GTAW) and MMA (SMAW) Welding Machine (1ph; 230V; 220A; without accessories)

Power supply: 230V, 1 ph, 50/60 Hz

Fuse: 16A

Normal current output (MMA): 10-200 A

Normal current output (TIG): 5-220 A

Maximum welding current: 220 A

No-load voltage: 76V

Duty cycle (environment temperature at 40°C):

- TIG (230 V / 16 A)

220 A/18.8 V @ 35%

165 A/16.6 V @ 60%

150 A/16.0 V @ 100%

- MMA (230 V / 16 A)

200 A/28 V @ 25%

135 A/25.4 V @ 60%

120 A/24.8 V @ 100%

Dimensions (L x w x h): 42.5x23x29.5 cm

Weight: 11kg

Protection class: IP21

Standard: IEC 60974-1/3/10 A

Optional accessories:

- Cooling unit 500W - 0.5L - 039490

- Cooling unit 1000W - 3.5L - 039773

Choose optional accessories when ordering
