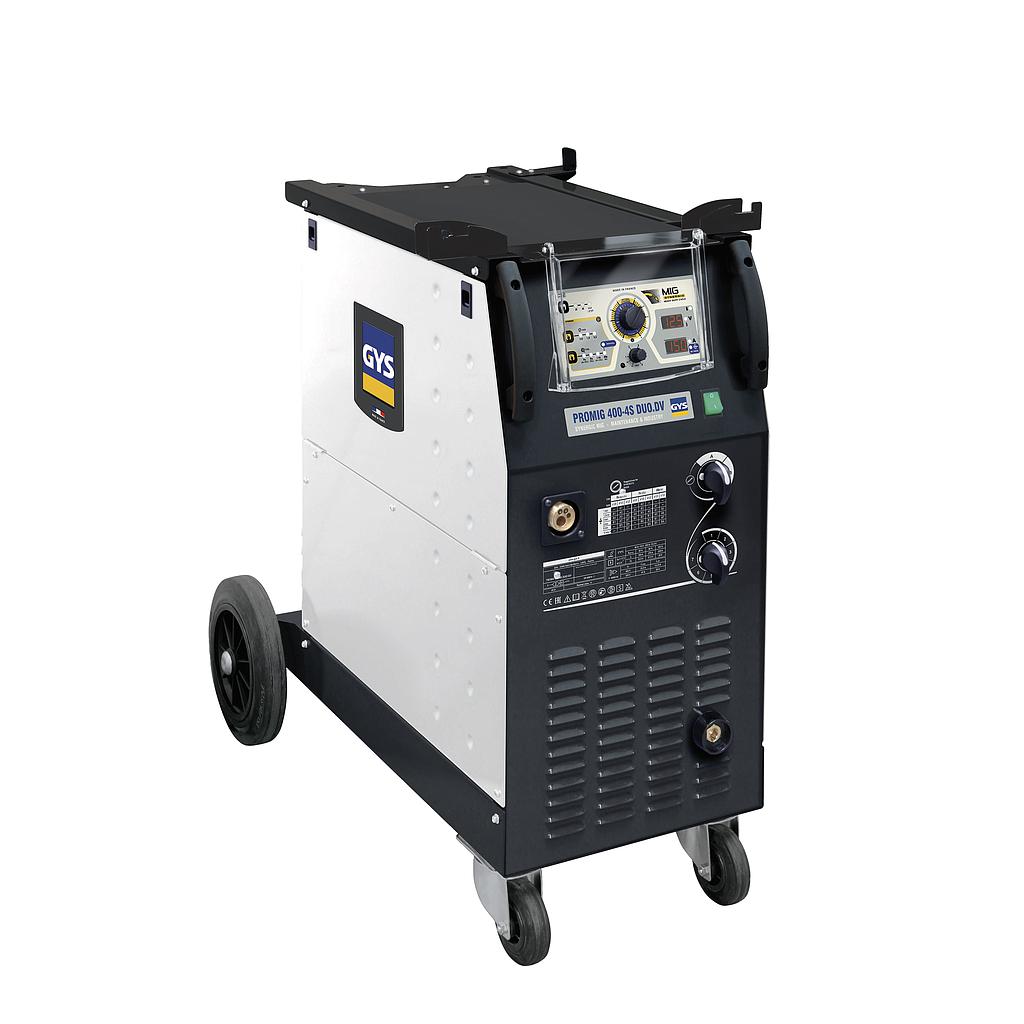

GYS PROMIG 400-4S DUO DV MIG/MAG Welding Machine (3ph; 230/400V; 40-350A; no accessories)

Three phase «Synergic» 350 Amp MIG welder with 4 drive rollers. Ideal for maintenance and industrial production work. Increase productivity - With two individual wire feeders it enables two different wire types/sizes are fitted at the same time thus avoiding time consuming wire and gas bottle changes.

SIMPLIFY YOUR WORK:

2 wire feeders: One located inside the power generator and one inside the separate wire feed unit with a 10 m connection cable.

2 torches: Automatic selection of the internal or external wire feeder and welding para meters (including gas type) upon pressing the trigger.

2 gas controls: Two solenoid valves enable different gas types to be selected just by pressing the trigger e.g Argon for aluminium used with the main machine and Argon/CO2 for steel on the separate wire feed unit.

2x faster : Eliminates the need to change MIG tips, drive rollers, torch liner and MIG wire reels when changing jobs.

2x more versatile: One machine can be setup to weld Steel/Aluminium, Steel/ Stainless or Aluminium/Stainless.

2 MODES : SYNERGIC OR MANUAL

GYS experience integrated in more than 1000 parameters managed by microprocessor.

- Synergic mode : Optimum results without adjusting the wire speed :

• Select wire type

• Select wire size

• Select the power (refer to table on the front of the machine)

- Manual mode : Manual adjustement option of the wire speed and power

Specifications:

Power supply: 230 V/400 V, 3 ph, 50/60 Hz

Fuse: 16A (230V) / 25A (400V)

Rate current output: 40-350 A

Duty cycle (environment temp. at 40°C):

350 A / 31.5 V @ 35%

270 A / 27.5 V @ 60%

220 A / 25 V @ 100%

Motor speed: 1 - 20 m/min- 4 rollers (2 motors)

Intergrated wire feeder: TF-4RN (option)

Supported wire reels: Ø200-300 mm

Wire diameter:

Cored wire: 0.9 - 1.6 mm

Steel, inox: 0.8 - 1.2 mm

Aluminum: 1.0 - 1.2 mm

Voltage positions switch: 14

No-load voltage: 17/41.5 V

Protection level: IP 21

Dimensions (L x w x h): 89 x 49 x 88 cm

Weight: 109 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - B (Steel, inox)

Choose optional accessories when ordering
