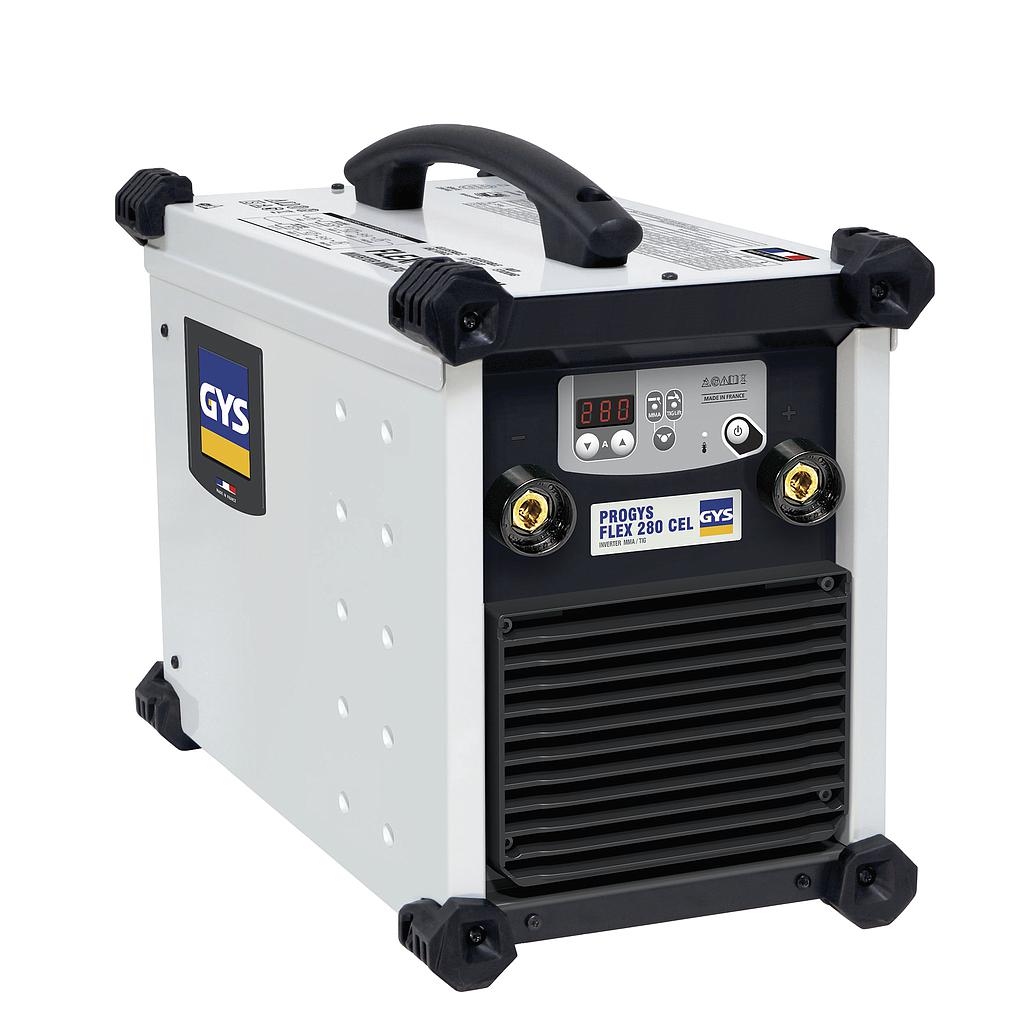

GYS PROGYS FLEX 280 CEL MMA and TIG DC Welding Machine (1-3ph; 230/400V; 280A; without accessories)

The FLEX 280 A CEL is an extremly versatile MMA Inverter welding machine capable of working on both single phase (110V & 240V) and 3 phase (415V) power supplies. The unit automatically manages the input power supply to produce a high quality arc condition. The robust build and IP23 protection rating makes it ideal for outside work in tough conditions.

High performance

• High duty cycle makes it ideal for industry applications.

• Capable of welding 1.6mm to 5mm electrodes.

• Features Secondary Regulation to maintain a stable arc.

Easy to set-up

• Switch from MMA to TIG by just pressing one button.

• Quick & precise adjustment of the welding current with two buttons.

• TIG lift : automatic arc release.

• Can be used with Tungsten electrodes from ø 1.6 to 2.4 mm.

• MMA Pulse : Developed for pipe welding as well as vertical up welding.

Cellulosic

• The FLEX 280 CEL has an open circuit voltage of 100V (cellulosic electrodes require an open circuit voltage of 90V).

• The high penetration given by this type of electrode makes it suitable for use in a number of applications including pipe welding and ship building.

Anti-dust ventilation corridor

• Allows cooling air to pass through the machine without coming into contact with the electronic circuit boards, protecting them from premature failure.

• Ideal for use in industrial environments

Specifications:

Power supply: 230/400 V, 1 ph/3 ph, 50/60 Hz

Fuse: 16 A (230/400 V); 20 A (230 V)

Normal current output (MMA): 5-200 A (230 V); 5-280 A (400 V)

Normal current output (TIG): 5-200 A (230 V); 5-280 A (400 V)

Maximum welding current: 280 A

No-load voltage: 100 V

Duty cycle (environment temperature at 40°C):

- 230V/1 ph:

MMA (20 A):

200 A/28 V @ 40%

180 A/27.2 V @ 60%

150 A/26 V @ 100%

TIG (20 A)

200 A/18 V @ 60%

180 A/17.2 V @ 100%

- 230V/3 ph:

MMA (20 A)

200 A/28 V @ 55%

190 A/27.6 V @ 60%

170 A/26.8 V @ 100%

TIG (16 A)

200 A/18 V @ 60%

200 A/18 V @ 100%

- 400 V / 1 ph:

MMA (16 A)

280 A/31.2 V @ 40%

220 A/28.8 V @ 60%

200 A/28 V @ 100%

TIG (16 A)

280 A/21.2 V @ 65%

250 A/20 V @ 60%

220 A/18.8 V @ 100%

- 400 V / 3 ph:

MMA (16 A)

280 A/31.2 V @ 35%

200 A/28 V @ 60%

170 A/26.8 V @ 100%

TIG (16 A)

280 A/21.2 V @ 45%

225 A/19 V @ 60%

180 A/17.2 V @ 100%

Dimensions (L x w x h): 47x43x26 cm

Weight: 23kg

Protection class: IP23

Standard: IEC 60974-1/10 A

Optional Accessories:

• Optional remote control - 8m (ref.045675)

• Optional foot pedal (ref. 045682)

Choose optional accessories when ordering
