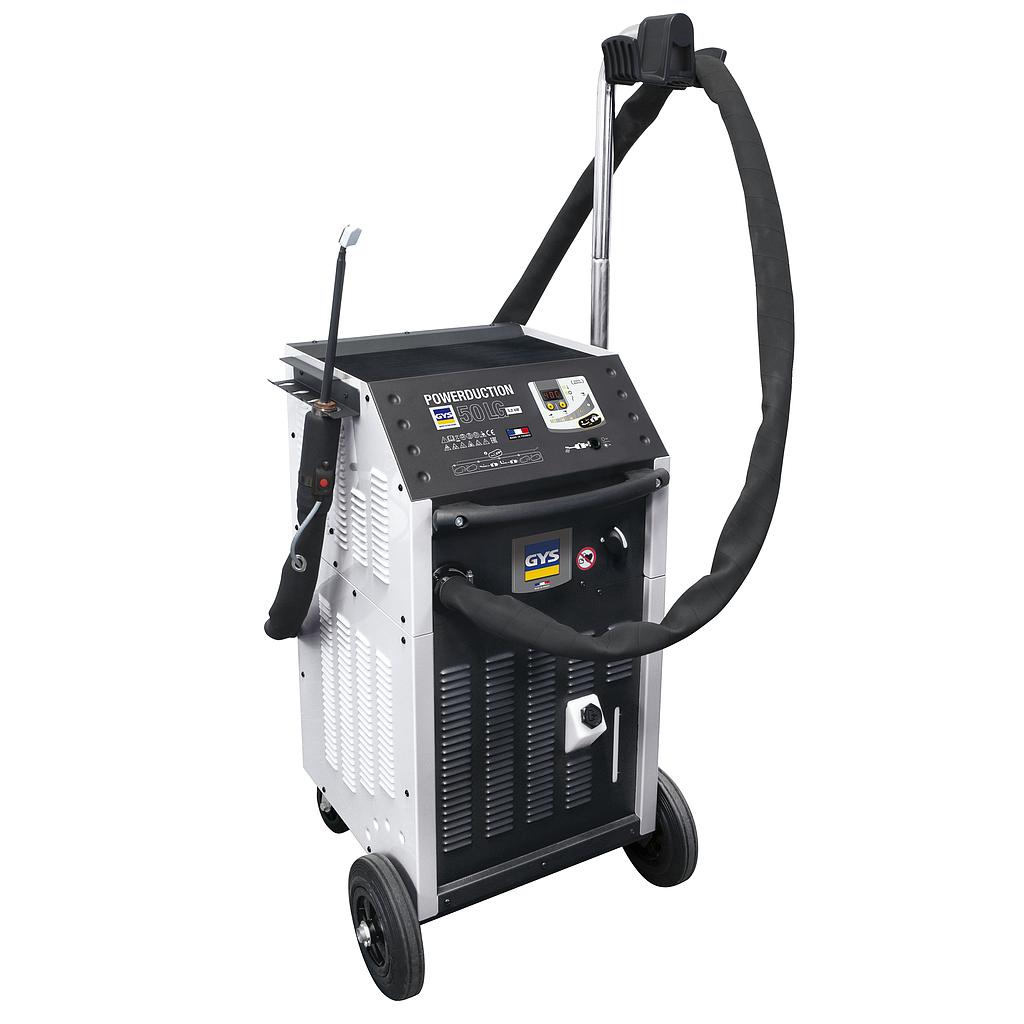

GYS POWERDUCTION 50LG Water Cooled Induction Heating Machine (1ph; 230V; 5200W; 20-60kHz)

The POWERDUCTION 50LG provides instant and powerful heating to release or heat both steel and aluminium. Equipped with a liquid cooling unit, this product is capable of heating metal parts for minutes at a time without interruption.

The ideal tool for mechanical and maintenance work:

• essential for releasing steering linkages (wheel alignment)

• remove glow plugs, seized up wipers and spare-wheel carriers

• release seized up bolts and steering ball joints without damaging them

• release shaft drives that have seized up in the hub

• remove automotive or HGV exhaust lines

FEATURES

• High heating performance: 5,200 W of power, that can be adjusted in increments of 500 W, allows the user to directly heat up the heart of the metal to a depth of 6mm. This machine is able to bring steel up to a red-hot heat (around 1,000°C):

• Enhanced security and time savings: Immediate and flame-less heating applied to a specific area, allowing the user to work close to cables, pipes or any other heat-sensitive part without requiring dismantling.

• Comfortable to use: its three-metre long inductor cable enables working at heights.

• Reinforced safeguards for use with power sources and protected against permanent overvoltage up to 400 V (factory tested).

• PFC feature: Power Factor Correction: regulates and uses the power supply more efficiently.

Specifications:

Power supply: 230 V - 1 ph, 50/60 Hz

Fuse: ≥25 A

Power: 5200 W

Heating frequency: 20-60 kHz

Coolant: Water (7 L)

Duty cycle (environment temp. 40°C) @ 100%: liên tục

Protection class: IP 21

Dimensions (L x w x h): 59 x 88 x 59 cm

Weight: 70 kg

Standard: IEC 60335-1

Power supply cable: 3 m

Included accessories: A complete inductor 20°C20/B1-056862
