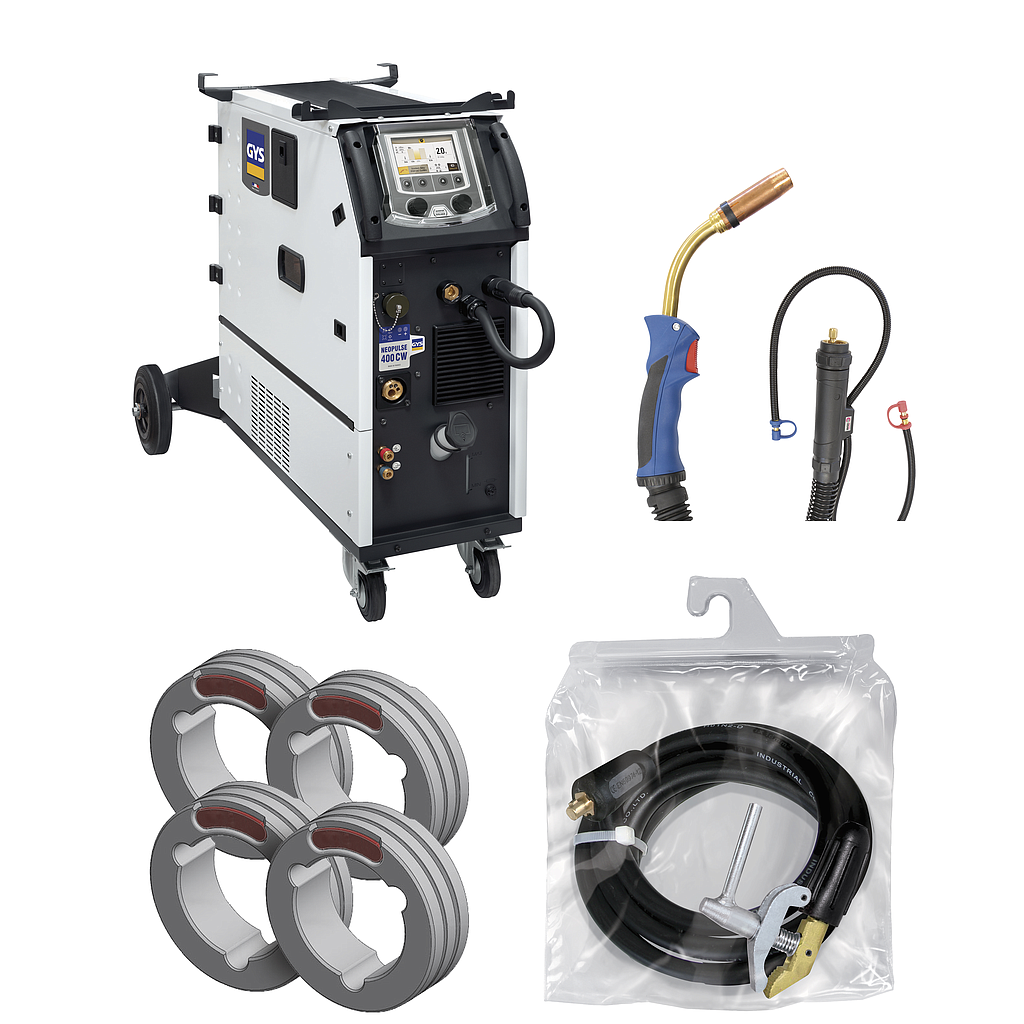

GYS PACK NEOPULSE 400 CW 2 MMA, TIG, MIG/MAG Welding Machine Set (3ph; 400V; 10-400A; Aluminum torch)

STANDARD DELIVERY:

1. NEOPULSE 400 CW

The NEOPULSE 400 CW is a three-phase, pulsed, MIG/MAG generator developed for heavy industry. The NEOPULSE 400 CW is mobile and equipped with a cooling unit and a powerful reeling system, making it ideal for handling demanding pulsed applications. Both intuitive and highly practical, its digital interface makes adjusting the welding settings very easy.

MULTI-PROCESS WELDING

▪ MIG/MAG :

- steel and stainless-steel wire: Ø 0.6 to 1.6 mm

- aluminium wire: Ø 0.8 to 1.6 mm

- CuSi and CuAl wire: Ø 0.8 to 1.6 mm

- flux-cored wire: Ø 0.9 to 2.4 mm

▪ MMA DC / Pulsed: basic, rutile and cellulosic electrodes (up to Ø 6 mm).

▪ TIG DC LIFT / PULSED.

▪ Gouging (up to Ø 6.5 mm)

SMART

- SYNERGIC mode: After entering two data (material/gas torque or wire diameter), the NEOPULSE automatically determines the optimal welding conditions and automatically adjusts the settings (wire feed speed, voltage, current and arc length).

ACCURATE

- Calibration of the weiding cables and motor speed, in order to adjust the voltage displayed and refine the energy calculation.

- Energy, display and energy calculation after welding based on standards EN1011-1, ISO/TR 18491 and QW-409.

- Portability: load/save user JOBS and machine settings using a USB stick.

- Traceability: track/record all welding steps, weld by weld, during industrial manufacturing in line with standard EN ISO 3834.

OPTIMISED MIG/MAG SETTINGS

- 5 MIG-MAG welding modes: Standard Dynamic, Standard Impact, Pulsed, Modularc and Manual.

MAXIMUM PRODUCTIVITY

▪ 4 microprocessors increase calculation speeds and optimise the machine’s efficiency.

▪ High productivity thanks to its high duty cycle (400 A @ 60%).

▪ Compatible wire spools: Ø 200 / 300 mm.

▪ Can be connected to a robot/PLC through a SAM control interface (optional).

▪ Dip coating of the entire power block for increased resistance.

▪ Powerful, electronically-controlled motor reel (100 W) with 4 driven rollers.

▪ High arc voltage for easy ignition and outstanding arc dynamics.

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 32 A

Rate current output (MIG-MAG/MMA/TIG): 10-400 A

Duty cycle (environment temp. at 40°C):

@ 60%: 400 A

@ 100%: 360 A

Motor speed: 1 - 22 m/min, 4 motorized rollers

Intergrated cooling unit: 1kW

Supported wire reels: Ø200-300 mm

Wire diameter:

+ Steel: 0.6 - 1.6 mm

+ Stainless steel: 0.6 - 1.6 mm

+ Aluminum: 0.8 - 1.6 mm

+ CuSi/CuAl: 0.8 - 1.6 mm

+ Flux-cored wire: 0.9 - 2.4 mm

No-load voltage: 85 V

Protection level: IP 23

Dimensions (L x w x h): 96 x 51 x 85 cm

Weight: 78 kg

Standard: IEC 60974-1/10 A

Original equipment (roller): 1.0/1.2 - F (steel, inox)

2. Roller type F (x4): original equipment Ø 1.0/1.2 steel/ stainless steel; Ø1.0/1.2 aluminum- 061903

3. Earth cable 600A 70 mm²- 043831

4. Torch MIG/MAG GRIP Steel 500A-4m water 046160
