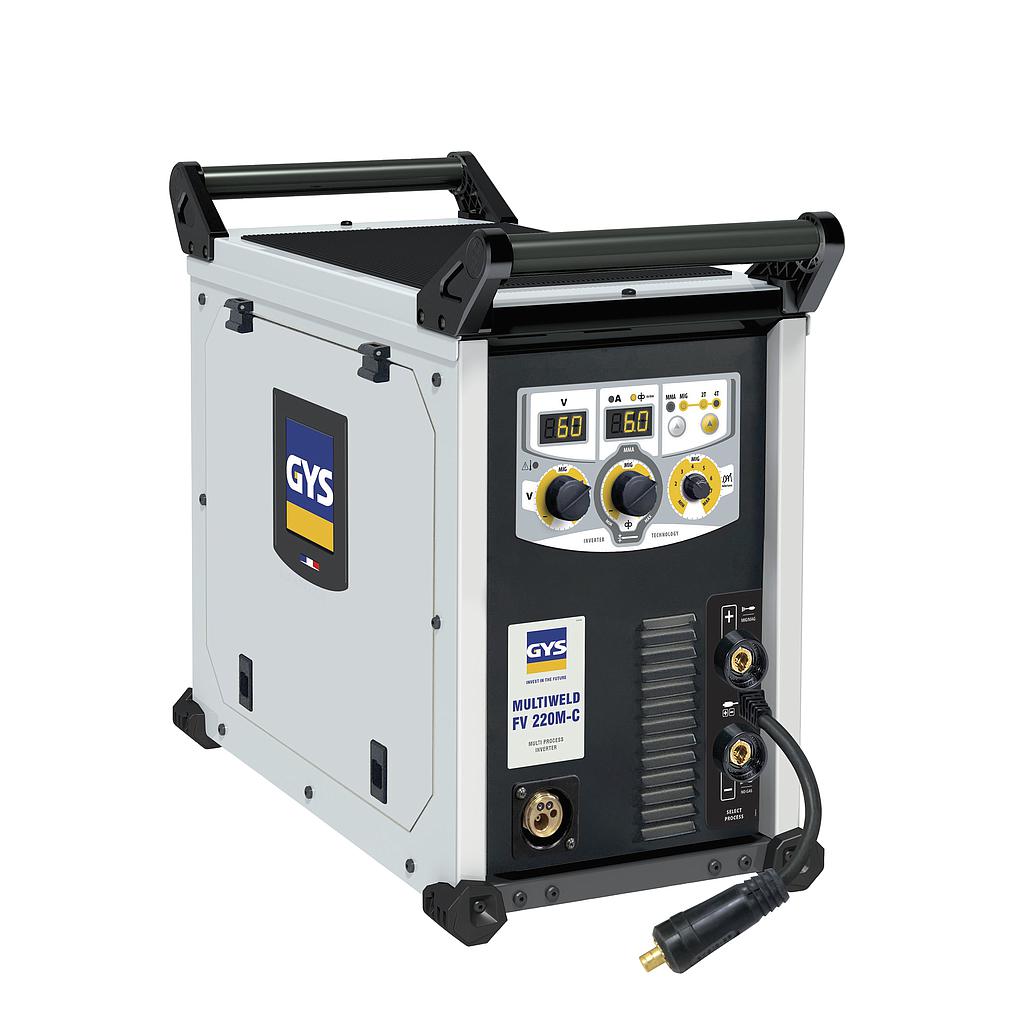

GYS MULTIWELD FV 220M-C MMA, MIG/MAG Welding Machine (1ph; 230V; 220A MIG/MAG; 200A MMA)

The MULTIWELD 220M-C is a compact single-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Equipped with an accurate 4-roller wire feeder system and a reinforced structure with 2 handles for lifting and slinging, it is ideal for welding in the workshop and for quick troubleshooting on site.

MULTIPROCESS:

MIG/MAG welding :

- steel wire: Ø 0.6 to 1.0 mm

- stainless steel wire: Ø 0.8 to 1.0 mm

- aluminium wire: Ø 0.8 and 1.0 mm

- cored wire (reverse polarity): Ø 0.9 to 1.2 mm

MMA welding: basic and rutile electrodes (up to Ø 5 mm).

OPTIMISED MIG/MAG SETTING:

- Choice of the trigger mode: 2T or 4T.

- Welding guide: tables assist the user to adjust and fine tune the voltage and the diameter of the filler wire according to the thickness of material being welded.

INTUITIVE

- Display readable even in bright light.

- Simple user interface with ergonomic controls allowing gloved use.

INTEGRATED WIRE FEEDER

- Compatible with reels : Ø 200 / 300 mm

- Wire feeder with 4 rollers for an efficient wire feeding.

- EURO torch connector for quick assembly/disassembly.

PRE-HEATING, PURE CO2

- Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).

- Compatible with US (type A) and EURO electrical sockets (type C/E/F).

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MIG/MAG): 30-220 A

Normal current output (MMA): 30-200 A

Duty cycle (environment temp. at 40°C):

- MIG/MAG:

Imax 220 A @ 20%

@ 60%: 160 A / 22 V

@ 100%: 120 A / 20 V

- MMA:

Imax 200 A @ 20%

@ 60%: 140 A / 25.6 V

@ 100%: 100 A / 24 V

Motor speed: 2 - 15 m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

+ Steel: 0.6 - 1 mm

+ Inox: 0.8 - 1 mm

+ Aluminum: 0.8 - 1 mm

+ Cored wire: 0.9 - 1.2 mm

No-load voltage: 75 V

Protection level: IP 23

Dimensions (L x w x h): 58 x 52 x 34 cm

Weight: 24 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - A (steel, inox)

Included accessories: Torch TOPARC MIG 250A - 3 m + Electrode holder 2 m + Earth cable 2.5 m
