GYS MULTIWELD 250T-C PACK MMA, MIG/MAG Welding Machine Set (3ph; 400V; 250A MIG/MAG; 220A MMA)

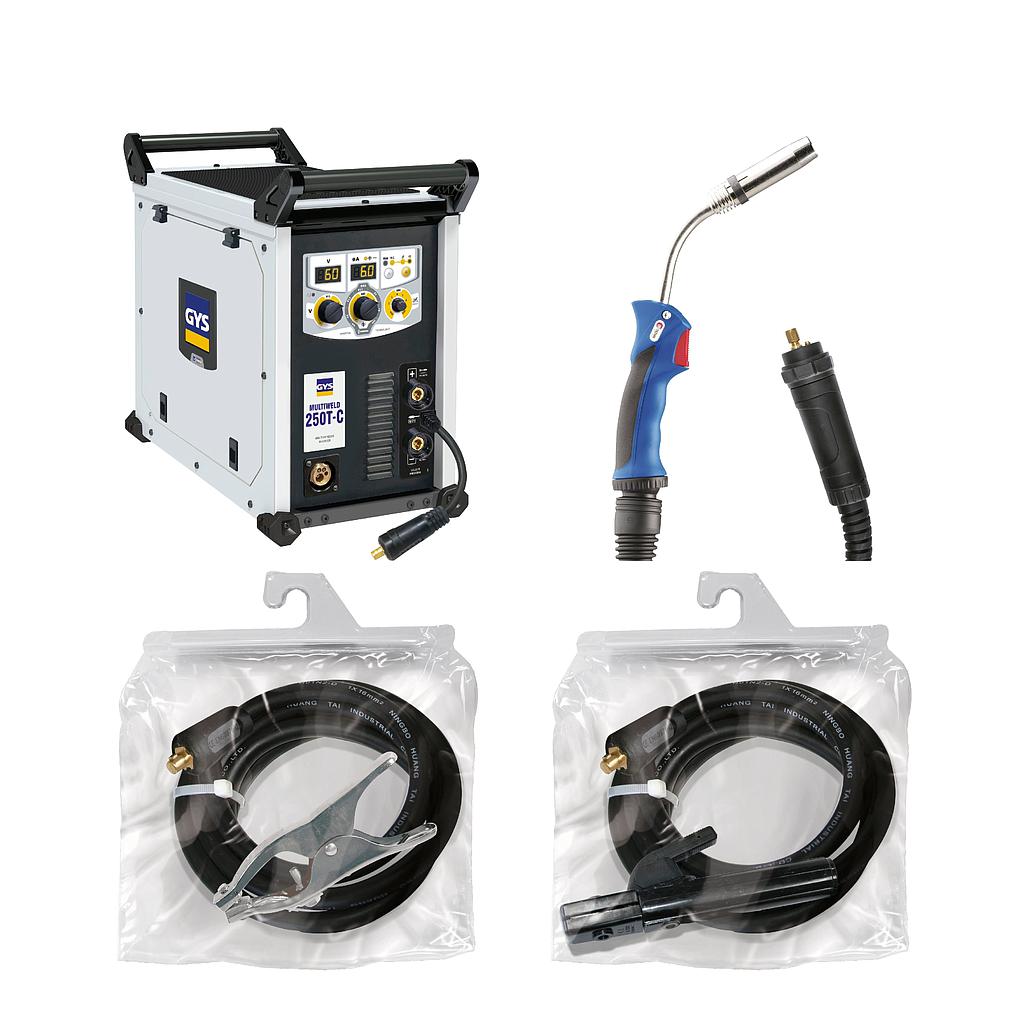

STANDARD DELIVERY:

1. MULTIWELD 250T-C

The MULTIWELD 250T-C is a compact three-phase generator combining MIG/MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise settings. With a reinforced structure including 2 handles for lifting and slinging, the MULTIWELD 250T-C is perfectly suited for welding in the workshop and on site use.

MULTIPROCESS:

+ MIG/MAG welding :

- steel wire: Ø 0.6 to 1.2 mm

- stainless steel wire: Ø 0.8 to 1.2 mm

- aluminium wire: Ø 0.8 and 1.0 mm

- cored wire (reverse polarity): Ø 0.9 to 1.2 mm

+ MMA welding: basic and rutile electrodes (up to Ø 5 mm).

OPTIMISED MIG/MAG SETTINGS

+ Choice of the trigger mode: 2T or 4T.

+ Welding aid: table on the side of the generator to help the user adjust his tension and filler wire diameter according to the thickness of the material to be welded.

INTUITIVE

+ Display readable even in bright light.

+ Simple interface with large buttons and knobs for use with gloved hands.

INTEGRATED WIRE FEEDER

+ Compatible wire reels: Ø 200 / 300 mm.

+ Powerful 2 roller motorized wire-feeder for an efficient wire feeding.

+ EURO torch connector for quick assembly/disassembly.

PRE-HEATING, PURE CO2

+ Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).

+ Compatible with US (type A) and EURO electrical sockets (type C/E/F).

ROBUST

+ Reinforced structure.

+ 2 steel handles for easy manipulation.

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MIG/MAG): 40-250 A

Normal current output (MMA): 40-220 A

Duty cycle (environment temp. at 40°C):

- MIG/MAG:

Imax 250 A @ 20%

@ 60%: 170 A / 22.5 V

@ 100%: 130 A / 20.5 V

- MMA:

Imax 220 A @ 20%

@ 60%: 150 A / 26 V

@ 100%: 120 A / 24.8 V

Motor speed: 2 - 15 m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

+ Steel: 0.6 - 1.2 mm

+ Inox: 0.8 - 1.2 mm

+ Aluminum: 0.8 - 1 mm

+ Cored wire: 0.9 - 1.2 mm

No-load voltage: 59 V

Protection level: IP 21

Dimensions (L x w x h): 58 x 52 x 32 cm

Weight: 32 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - A (steel, inox)

2. MIG Torch Grip 250A - 4 m

3. Electrode holder 4 m

4. Earth clamp 4 m
