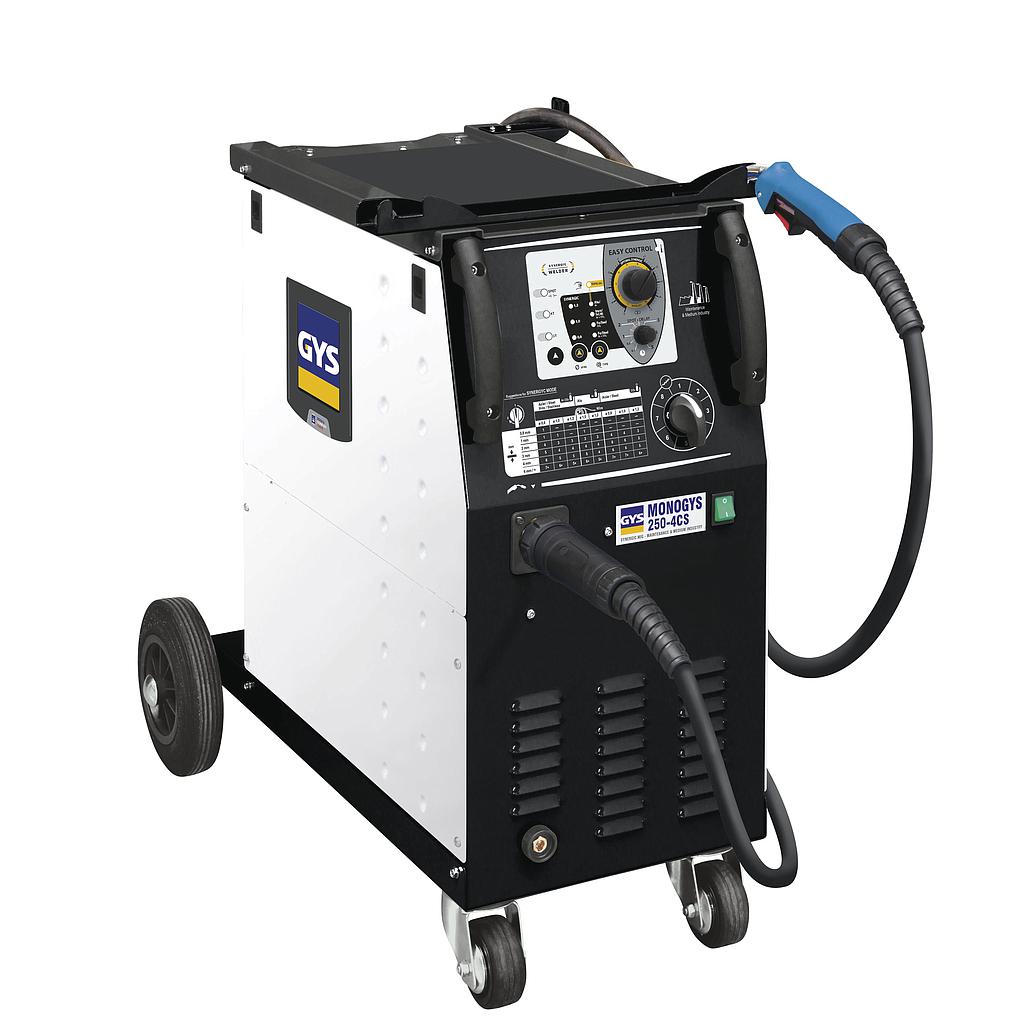

GYS MONOGYS 250-4CS MIG/MAG Welding Machine (1ph; 240V; 40-250A)

250 Amp, single phase MIG welder with 4 roll wire feed system and semi-synergic control panel.

Controlled by microprocessor, set up is quick and easy with the machine controlling wire speed, this function avoids complex set up and ensures optimum welding performance.

PRODUCT

In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.

3 FUNCTIONS AVAILABLE

- 2T : 2 stroke welding.

- 4T : 4 stroke welding, to weld during a long period without constantly pressing the trigger.

- Spot : for plug welding.

SYNERGIC MODE FOR EASY AND QUICK SETTINGS

- With this function, the wire speed setting is Automatic.

Simply select:

• the wire type

• the wire ø

• the power

MONOGYS 250-4CS sets the optimum wire speed for you.

- Save the last settings.

Specifications:

Power supply: 240 V, 1 ph, 50/60 Hz

Fuse: 25 A

Rate current output: 40-250 A

Duty cycle (environment temp. at 40°C):

- Imax 250 A @ 15%

155 A / 21.75 V @ 60%

110 A / 19.5 V @ 100%

Motor speed: 1 - 20 m/min- 4 rollers (2 motors)

Supported wire reels: Ø200-300 mm

Wire diameter:

Steel, inox: 0.8 - 1.2 mm

Aluminum: 1.0 - 1.2 mm

Voltage level: 8

No-load voltage: 38.4 V

Protection level: IP 21

Dimensions (L x w x h): 74 x 63.5 x 33 cm

Weight: 75.5 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - B (Steel, inox)

Included accessories: Torch TOPARC MIG 250A - 3 m + Earth clamp with cable 250 A - 2 m, 25 mm²

Optional accessories: Torch MB25 kit (250A) - 041233
