GYS MAGYS 400 GR 2 ALU PACK MIG/MAG Welding Machine Set (3ph; 400V; 40-350A; Alu Torch)

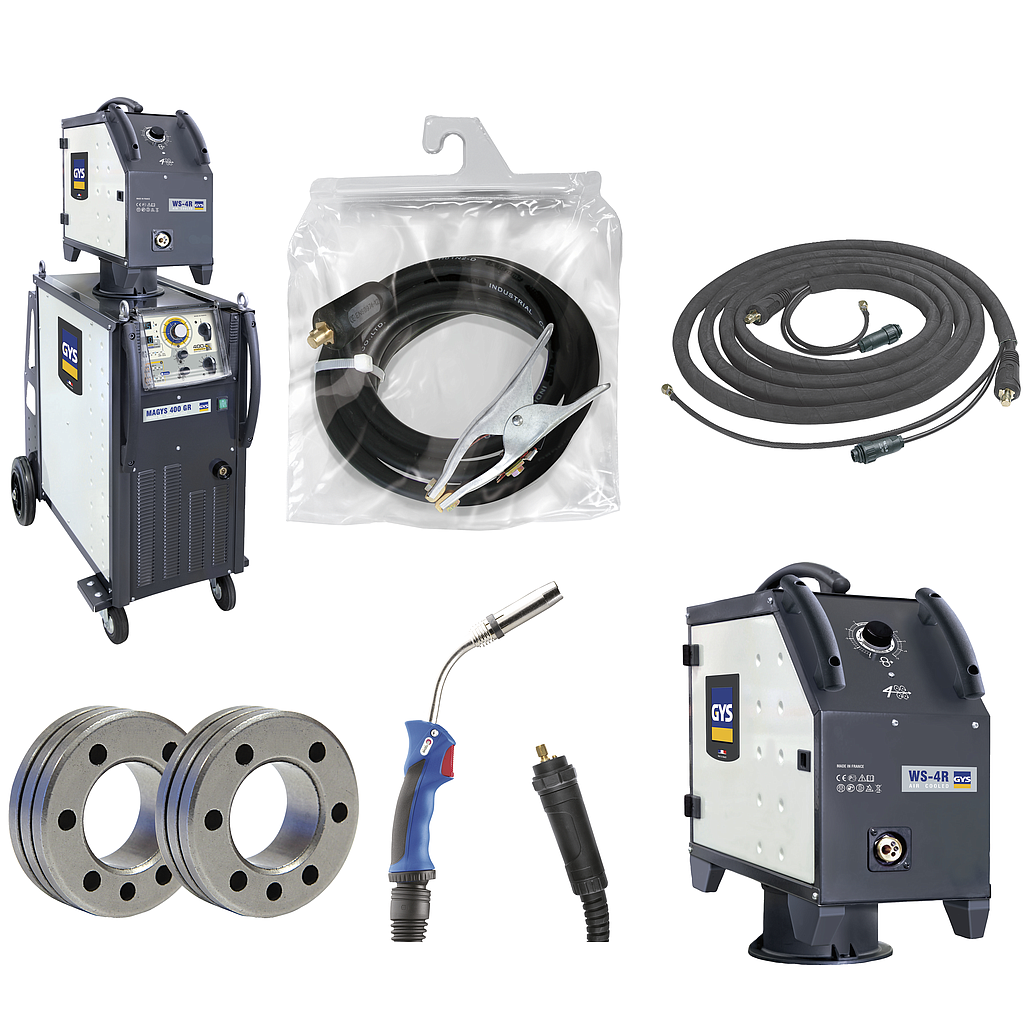

STANDARD DELIVERY:

1. MAGYS 400 GR

The MAGYS 400 GR with its wire feeder is a “synergic” 3-Phase MIG/MAG with an air cooled system. Its heavy duty design and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium. The cables, available either of 5 to 10 meters, are perfectly suited for intensive work up to ø1.2.

4 MODES:

- 2T / 4T

- Spot: Welding with adjustable spot diameter

- Delay: Intermittent welding mode

SYNERGIC OR MANUAL

More than 1000 parameters managed by micro processor.

- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:

• The wire type

• The wire diameter

• The power, with its two switches

MAGYS 400 GR will automatically control:

• Optimum wire speed

• The pre-gas / post-gas

• Burn back

- Manual mode: Enables manual control of the wire speed

HEAVY DUTY DESIGN AND ENGINEERING

- Wire feeder and 4 drive rollers

- Robust build to suit industrial requirements

- Gas bottle support up to 10m³ (50l)

- 4 eye bolts for lifting the machine

- Heavy duty reinforced wheels for good mobility

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 20 A

Normal current output: 40-350 A

Duty cycle (environment temp. at 40°C):

350 A / 31.5 V @ 50%

320 A / 30 V @ 60%

320 A / 30 V @ 100%

Wire feeder WS-4R or W5S-4L (option)

Voltage positions switch: 20

No-load voltage: 17/43 V

Protection level: IP 23

Dimensions (L x w x h): 50 x 105 x 98 cm

Weight: 130 kg

Standard: IEC 60974-1/5/10 A

2. MIG connection cable 10m - 034860

3. Wire feeder for MAGYS - Air - WS-4R- 034723

4. Roller type C: original equipment (steel/ inox): Ø1.0/1.2

5. Roller type C: Ø 1.0/1.2- aluminum- 042162

6. Earth clamp 400 A - 4 m - 047853

7. Torch MIG/MAG GRIP (Aluminum), 350A-3m - 040731
