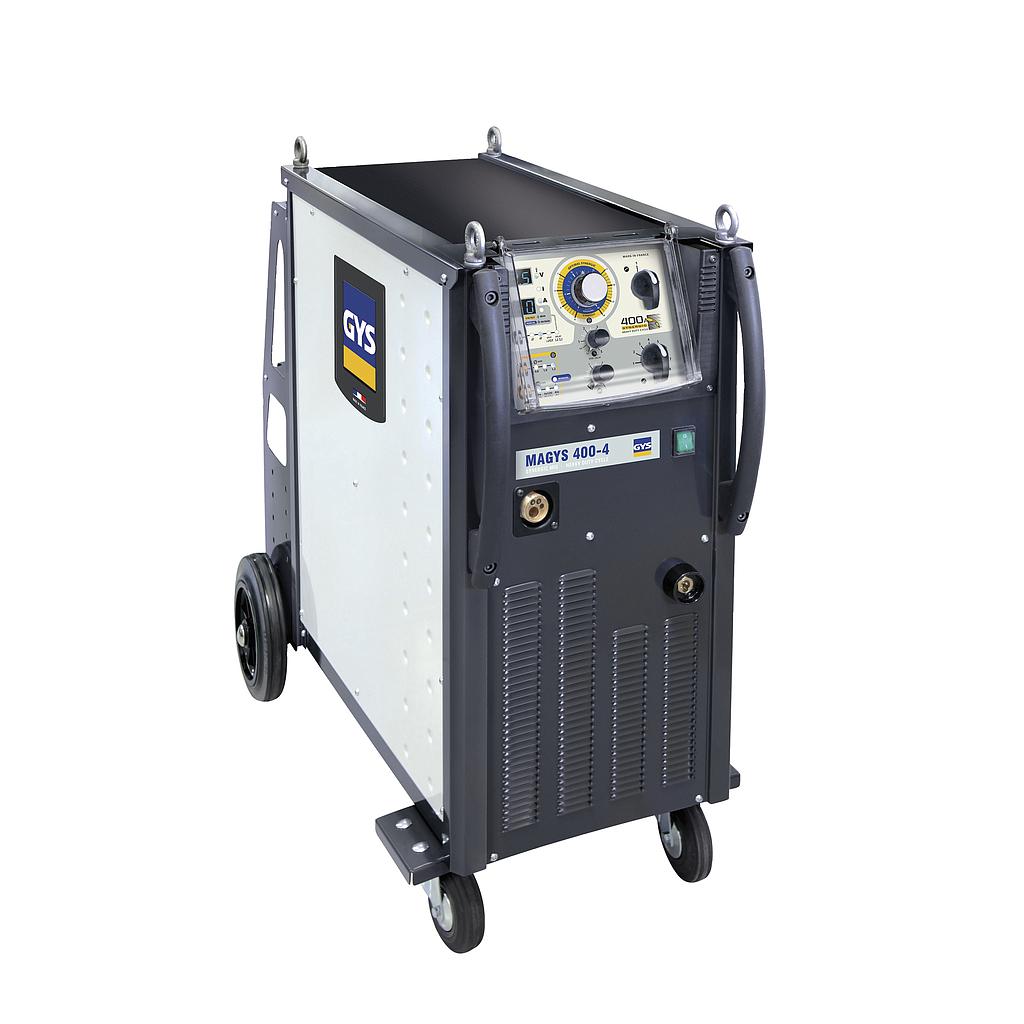

GYS MAGYS 400-4 MIG/MAG Welding Machine (3ph; 400V; 40-350A; no accessories)

The MAGYS 400-4 is a « synergic » 3-Phase, Compact MIG/MAG welder. Its heavy duty construction and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium. Equipped with a 75W wire feeder and 4 drive rollers, it is perfectly suited for intensive works up to ø1.2.

4 MODES:

- 2T / 4T

- Spot: Welding with adjustable spot diameter

- Delay: Intermittent welding mode

SYNERGIC OR MANUAL

More than 1000 parameters managed by micro processor.

- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:

• The wire type

• The wire diameter

• The power, with its two switches

MAGYS 400-4 will automatically control:

• Optimum wire speed

• The pre-gas / post-gas

• Burn back

- Manual mode: Enables manual control of the wire speed

HEAVY DUTY DESIGN AND ENGINEERING

- Wire feeder and 4 drive rollers

- Robust build to suit industrial requirements

- Gas bottle support up to 10m³ (50l)

- 4 eye bolts for lifting the machine

- Heavy duty reinforced wheels for good mobility

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 20 A

Normal current output: 40-350 A

Duty cycle (environment temp. at 40°C):

350 A / 31.5 V @ 50%

320 A / 30 V @ 60%

320 A / 30 V @ 100%

Motor speed: 1 - 24 m/min- 4 motored rollers

Supported wire reels Ø200-300 mm

Wire diameter:

Steel, inox: 0.6 - 1.2 mm

Aluminum: 1.0 - 1.2 mm

Voltage positions switch: 20

No-load voltage: 17/43 V

Protection level: IP 23

Dimensions (L x w x h): 50 x 105 x 98 cm

Weight: 130 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - C (Steel, inox)

Choose optional accessories when ordering
