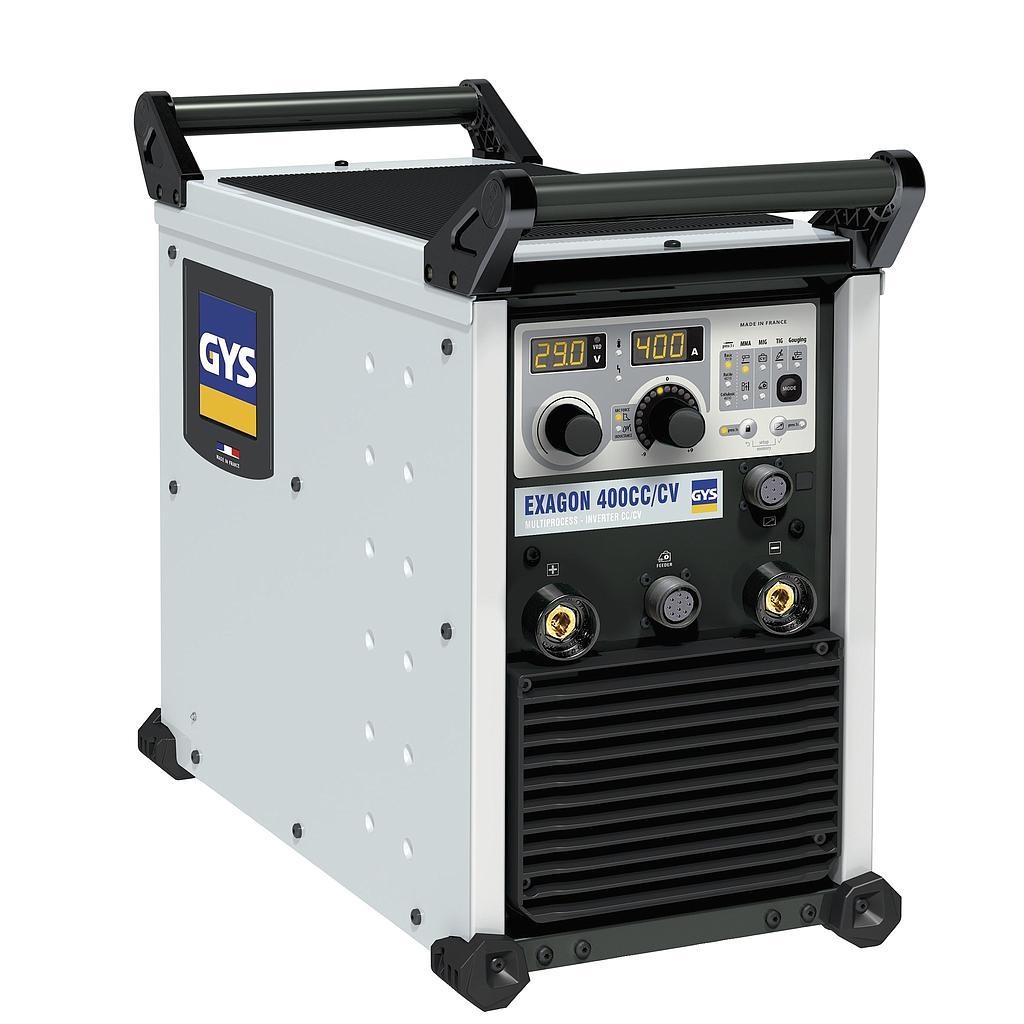

GYS EXAGON 400 CC/CV MMA/MIG-MAG/TIG Welding Machine (3ph; 400V; 400A; without accessories)

Powered by inverter technology, the EXAGON 400 combines MMA, MIG-MAG & TIG in a single machine, offering exceptional welding performance. Featuring advanced electronics and a reinforced structure, this station guarantees maximum productivity, even in the most hostile environments. Powerful, sturdy and versatile, the EXAGON 400 takes welding to the next level.

MULTIPROCESS WELDING:

Versatile thanks to its 6 modes:

• MMA : basic, rutile and cellulosic electrodes (up to Ø 6 mm)

• MMA Pulse : ideal for rising vertical welding

• MIG / MAG : solid wire (Ø 0.6/1.6 mm) and cored wire (Ø 2.4 mm)

- Workshop water cooled wire feeder (optional EXAFEED 4L)

- Construction site wire feeder (optional NOMADFEED)

• Arc gouging with carbon electrode (up to Ø 6.4 mm),

• TIG DC with TIG lift start

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 32A

Rate current output (MMA): 20-400 A

Rate current output (TIG): 10-400 A

Rate current output (MIG/MAG): 15-400 A

Maximum welding current: 400 A

No-load voltage: 84 V (< 35V VRD activated)

Duty cycle (environment temperature at 40°C):

- MMA

400 A/36 V @ 60%

350 A/34 V @ 100%

- TIG

400 A/26 V @ 60%

350 A/31.5 V @ 100%

- MIG/MAG

400 A/34 V @ 60%

350 A/24 V @ 100%

Dimensions (L x w x h): 58x52x30 cm

Weight: 32kg

Protection class: IP23

Standard: IEC 60974-1/10 A

OPTIONAL ACCESSORIES

- Compatible wire feeders: EXAFEED - 036291

NOMADFEED - 036291

- EXACOOL - 032422

- Connection cable (water cooled):

1.8m 70mm2 - 037243

5m 70mm2 - 047617

10m 70mm2 - 047624

10m 95mm2 - 047631

15m 95mm2 - 038448

20m 95mm2 - 038455

- Trolley - 037328

- Hand trolley JOBSITE XL - 039568

Choose optional accessories when ordering
