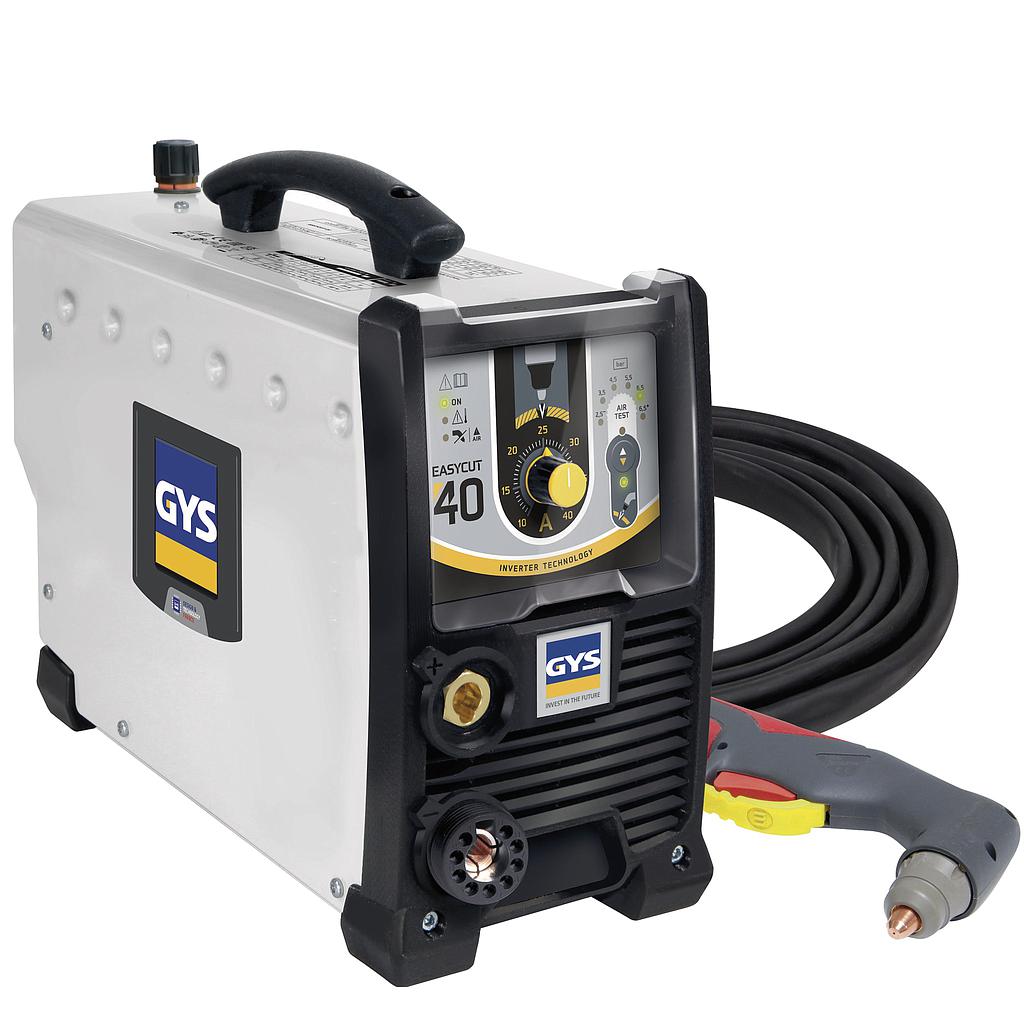

GYS EASYCUT 40 Plasma Cutter (1ph; 230V; 10-40A)

The ultra-compact EASYCUT 40 is an 8 kg plasma cutter featuring a non-HF starting voltage, making it perfect for cutting all types of metal up to 20 mm thick. With a power output of 40 A, it is fantastic at precision cutting using a low current. This appliance is deal for workshops or car bodywork repair shops thanks to its excellent portability and cutting performance.

EFFICIENT

■ Its inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened and high-tensile), aluminium and copper, etc.

■ Quickly and easily set up consumables

ERGONOMIC TORCH

■ Effective cutting: an air cooled torch body provides greater arc stability and a high duty cycle.

■ Equipped with an ergonomic handle for comfort and ease.

■ Designed to be shock and heat resistant.

■ Connect and disconnect the torch quickly and without using any tools.

SIMPLE TO USE

■ Intuitive control panel.

■ Manually adjust the air pressure (2.5 < 6.5 bar) with a bargraph on the front panel.

■ Automatic torch detection.

■ Non-HF ignition prevents disturbances that could damage nearby electronic equipment.

SAFE

Built-in protections:

- Protected against overvoltage and overcurrent.

- Indication of insufficient air pressure or torch detection.

ERGONOMIC

■ Reinforced structure with isolated non slip rubber pads.

■ HMI protective cover.

■ The torch and earth clamp can be disconnected.

■ Compact, lightweight and portable.

Specifications

Power Supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Cutting current range: 10-40 A

Duty cycle (environment temp. 40°C)

Imax 40 A / 96 V

@ 60% 10 A / 84 V

No load voltage: 440 V

Recommended air flow rate: 115 L/min

Recommended air pressure: 2.5 > 6.5 bar

Protection class: IP 21

Dimensions (L x w x h): 42 x 15 x 30 cm

Weight; 8 kg

Standard IEC 60974-1/10 A

Equipped torch: TPT TPT 40 - 4 m

Included accessories: Torch TOPARC TPT 40, 4 m + Earth cable 2 m
