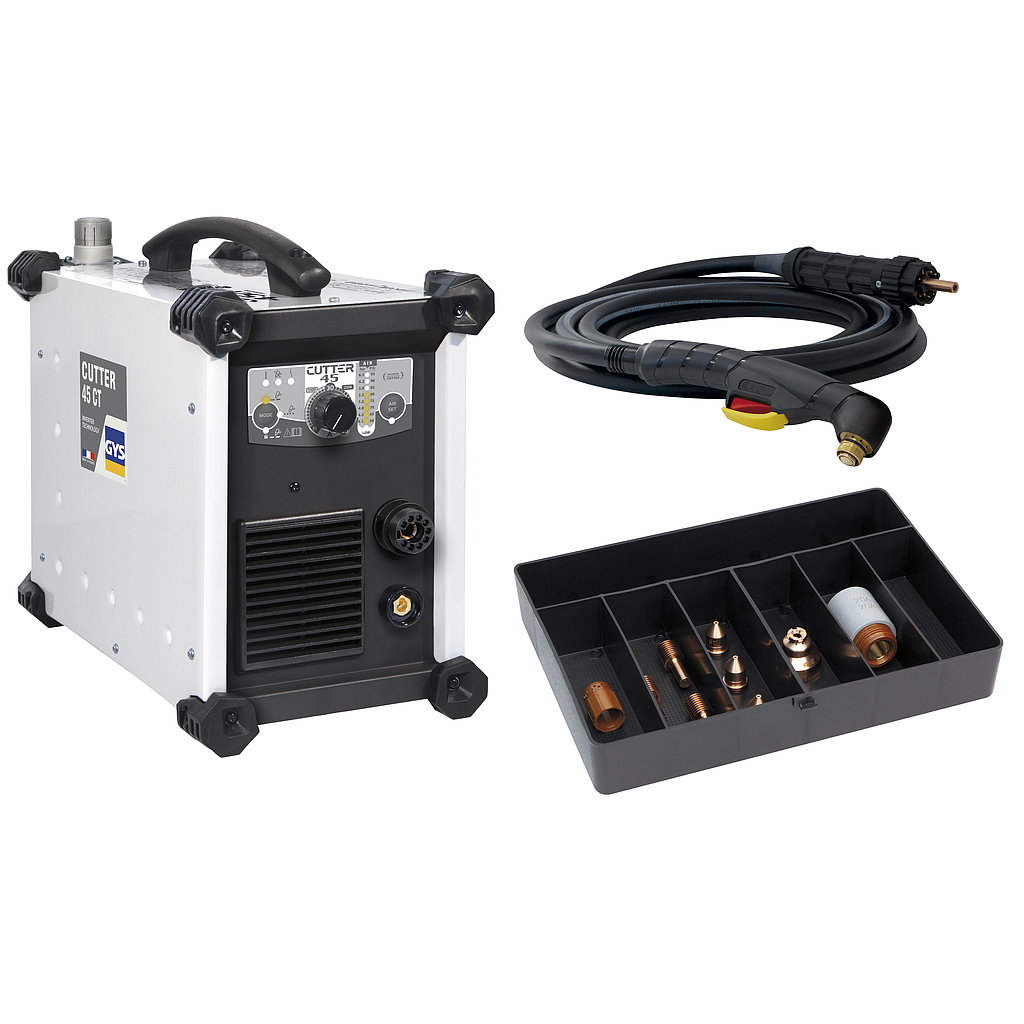

GYS CUTTER 45CT M1 PACK Plasma Cutter Set (1ph; 230V; 15-45A; Torch 6m)

STANDARD DELIVERY

1. CUTTER 45 CT

The CUTTER 45 CT is a 45 A plasma cutter with a clean cutting capacity of 20 mm thick on a wide range of materials thanks to the MT/AT 40 torch range. The HF-free arcing system preserves and increases the lifetime of consumables. Designed to be used in difficult environments, it has a very robust mechanics and a user friendly control panel. It is pre-wired for use on automatic cutting tables.

MAXIMUM PRODUCTIVITY

■ Faster cutting speed than using oxygas

■Cuts all types of steel (mild, stainless, tempered, HLE), aluminium, copper, etc.

■Optimised cooling using the ventilation corridor that helps insulating the electronic components from the dust.

■ Consumables setting up is easy for maximum productivity.

■ Duty cycle 41 A at 60 % (40°C)

- Flexible Voltage Hose (85 to 265V), accepts very long network connections (100 m).

- PFC technology, the electrical network is betterexploited and allows an energy saving of 30%

TORCH RANGE MT 70 / AT 70 (6/12 m)

■User friendly interface :

- 3 working modes : plain metal sheet / open metal sheet / locked

- manual setting of the air pressure using front screen chart.

■ HF-free ignition to prevent disturbances that could damage nearby electronic equipment.

■ Compatible with CNC kit for automatic cutting tables.

■ Disconnectable earth cable for easy storage and simple replacement

DESIGNED TO LAST

■Reinforced metal case & non slip rubber pads.

■IP 23 certified for external use.

■Compact & portable

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Normal current output: 15-45 A

Duty cycle (environment temp. 40°C):

Imax: 45 A @ 50%

@ 60%: 41 A / 96.4 V

@ 100%: 32 A / 92.8 V

No load voltage: 320 V

Recommended air flow rate: 115 L/min

Recommended air pressure: 5 > 7 bar

Protection class: IP 23

Power generator: > 10.5 kW

Dimensions (L x w x h): 48 x 37 x 23 cm

Weight: 15 kg

Standard IEC: 60974-1/10 A

Recommended manual torch: MT-70 or TPT 40

2. Connections 8mm, 10mm

3. Torch TOPARC MT-70, 6 m -037502

4. Consumable box -061613

5. Earth cable, 2 m
