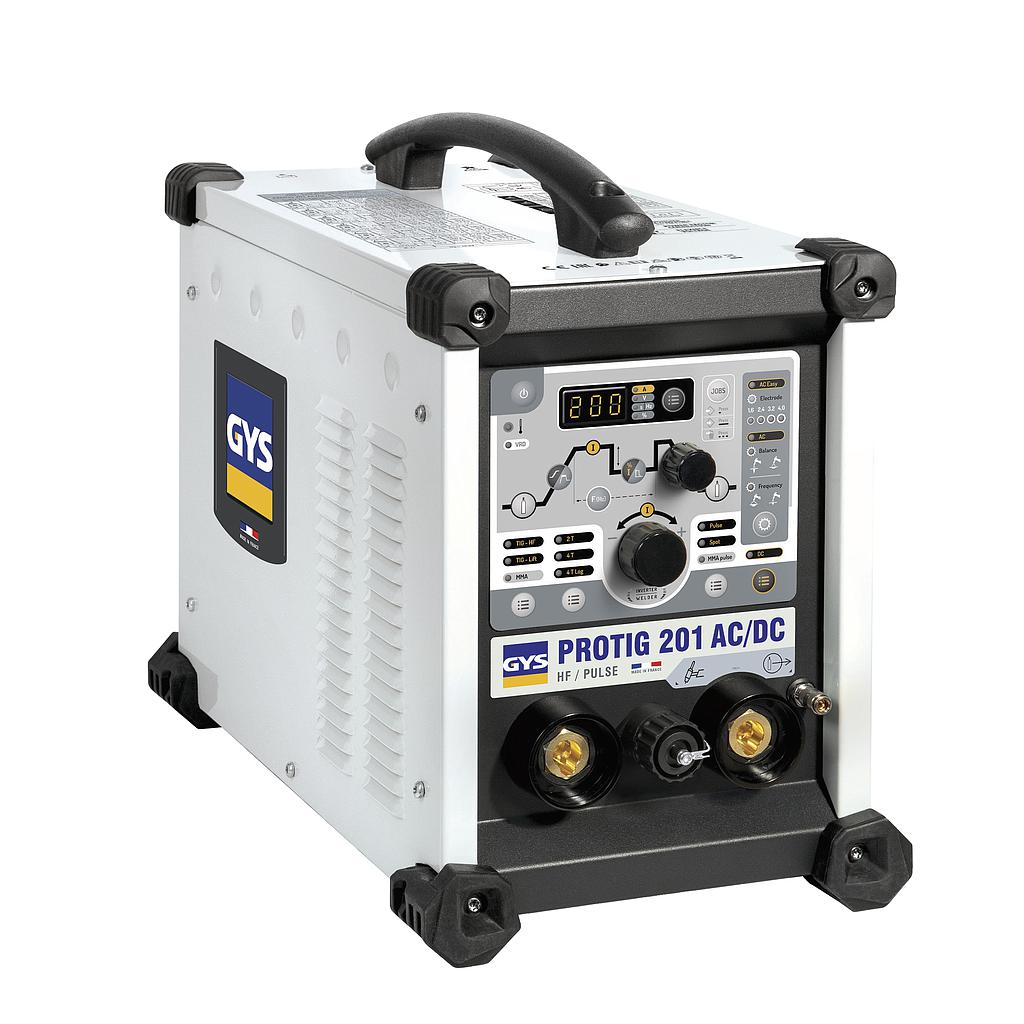

GYS PROTIG 201 AC/DC TIG AC/DC and MMA Welding Machine (1ph; 230V; 200A AC; 160 A DC; no accessories)

The PROTIG 201 AC/DC is the professional TIG welding solution for welding all types of metal up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium). It ensures a very high level of precision in many areas such as fabrication, maintenance or piping.

- 6 TIG AC/DC processes:

• Welding current : 10 to 200 A (TIG AC), 10 to 160 A (TIG DC)

• TIG DC - Standard : Ensures a quality weld on all ferrous materials such as steel, stainless steel but also copper and its alloys, titanium...

• TIG DC Pulse : Controls molten temperature, limits deformation and thus allows the assembly of thin sheets from 0.3 mm.

• TIG DC SPOT: Pre-assembles ferrous metal parts by tacking

• TIG AC - Easy : Makes the use of the welding machine easier thanks to predefined settings.

The user only selects the diameter of his tungsten electrode on the interface.

• TIG AC - Standard : Designed for welding aluminium and its alloys (Al, AlSi, AlMg, AlMn...).

Alternating current provides cleaning of the aluminium for a perfect weld.

• TIG AC - SPOT : Pre-assembles the aluminium parts by tacking.

- 2 modes of coated electrode welding

• Welding current : from 10 to 160 A (MMA)

• MMA Standard : Accepts basic, rutile electrodes up to Ø 4 mm.

• MMA Pulse : Helps welding in a vertical upright position (nozzles/pipeline).

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 13 A

Maximum welding current: 200 A (AC) 160 A (DC)

Normal current output (TIG AC): 10-200 A

Normal current output (TIG DC): 10-160 A

Normal current output (MMA): 10-160 A

Duty cycle (environment temperature at 40°C):

- TIG AC: 200 A @ 13%

90 A / 13.6 V @ 60%

80 A / 13.2 V @ 100%

- TIG DC: 160 A @ 25%

100 A / 14 V @ 60%

95 A / 13.8 V @ 100%

- MMA: 160 A @ 25%

100 A / 24 V @ 60%

95 A / 23.8 V @ 100%

Dimensions (L x w x h): 24x41x36 cm

Weight: 15 kg

Protection class IP21

Standard: IEC 60974-1/3/10 A

No-load voltage: 70V (< 30 V VRD activated)

Optional accessories:

- Sack truck - 039704

- Trolley - 041257

- Manual remote control - 045675

- Foot pedal remote control - 045682

Choose optional accessories when ordering
