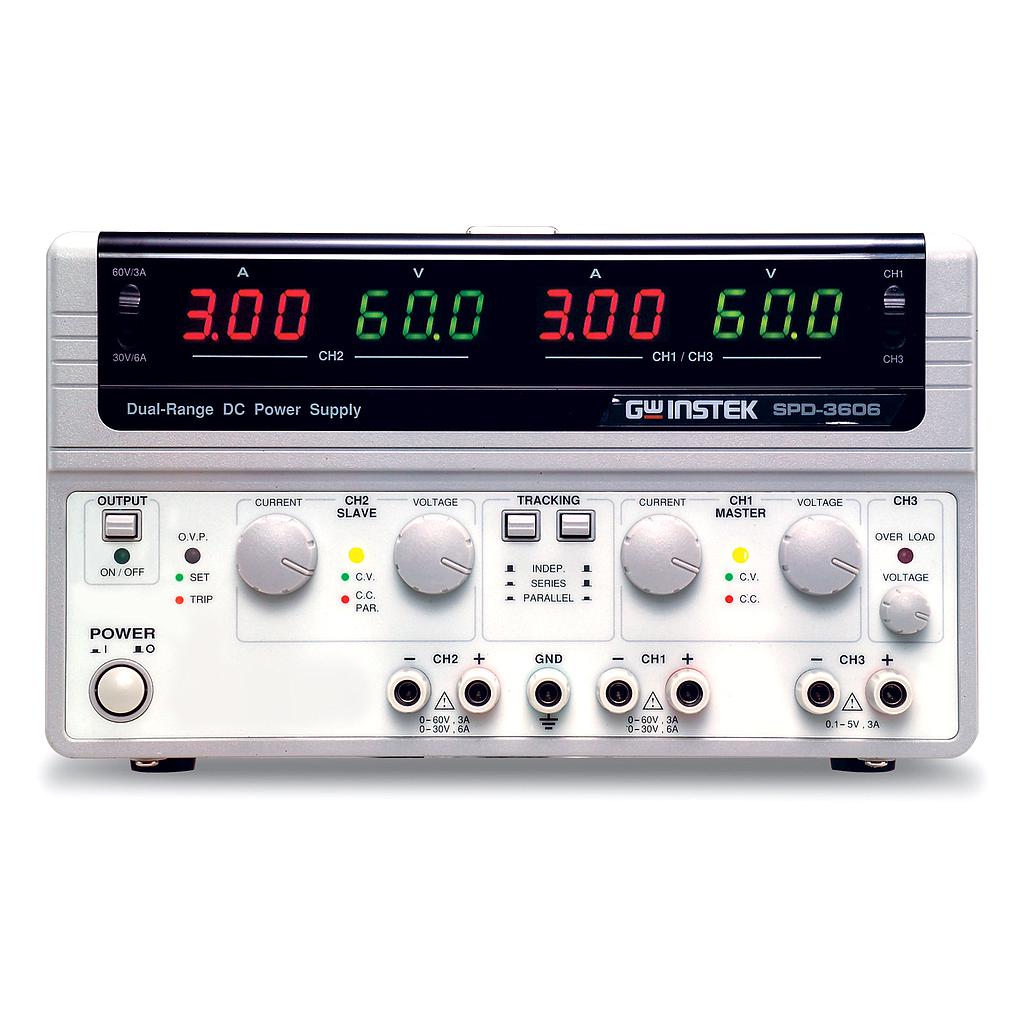

GW INSTEK SPD-3606 Multiple Output Dual Range D.C Power Supply (60V, 6A, 3CH)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
.
Accessories: ; User Manual x 1; Power Cord x 1, Test Lead GTL-104x2, GTL-105x1; GTL-201x1, GTL-203x1, GTL-204x2
OUTPUT RATINGS | |
| CH1/CH2 Independent | 0 ~ 30V / 0 ~ 6A ; 0 ~ 60V / 0 ~ 3A |
| CH1/CH2 Series | 0 ~ 60V / 0 ~ 6A ; 0 ~ 120V / 0 ~ 3A |
| CH1/CH2 Parallel | 0 ~ 30V / 0 ~ 12A ; 0 ~ 60V / 0 ~ 6A |
| CH3 | 0.1 ~ 5V / 3A |
| VOLTAGE REGULATION | |
| Line | ≦0.01% + 3mV |
| Load | ≦0.01% + 5mV (rating current ≦6A) ≦0.01% + 8mV (rating current ≦12A) |
| Ripple & Noise | ≦5mVrms (5Hz ~ 1MHz ) ≦ 50mVpp (20Hz ~ 20MHz) |
| Recovery Time | ≦100μs(50% load change, minimum load 0.5A) |
| CURRENT REGULATION | |
| Line | ≦0.2% + 3mA |
| Load | ≦0.2% + 3mA |
| Ripple & Noise | ≦3mArms |
| TRACKING OPERATION | |
| Tracking Error | ≦0.5% + 10mV of master |
| Series Regulation | ≦300mV |
| Ripple & Noise | ≦10mVrms (5Hz ~ 1MHz) ≦100mVpp (20Hz ~ 20MHz) |
| OUTPUT ON/OFF RESPONSE TIME | |
| Voltage Up (10% ~ 90%) | ≦100ms ( ≦ 95% rating load) |
| Voltage Down (90% ~ 10%) | ≦100ms ( ≧ 10% rating load) |
| OVP | |
| Accuracy | ± (0.5% of reading + 0.5V) |
| METER | |
| Type | 3 1/2 digits 0.5" LED display |
| Accuracy | ± (0.5% of reading + 2 digits) |
| Resolution | 100mV/10mA |
| INSULATION | |
| Chassis & Terminal | 100MΩ or above (DC 1000V) |
| Chassis & AC code | 100MΩ or above (DC 1000V) |
| TEMPERATURE COEFFICIENT | |
| Voltage | ≦ 100ppm/°C + 3mV |
| Current | ≦ 150ppm/°C + 3mA |
| REMOTE CONTROL | |
| Output On/Off | |
| FAN NOISE | |
| ≦50dB | |
| OPERATION ENVIRONMENT | |
| Ambient temperature 0 ~ 40℃ Relative humidity ≦ 80% | |
| STORAGE ENVIRONMENT | |
| Ambient temperature -10 ~ 70℃ Relative humidity ≦70% | |
| POWER SOURCE | |
| AC 115V/230V ±15%, 50/60Hz | |
| ACCESSORIES | |
| User manual x 1, Power code x 1 Test lead GTL-104 x 2, GTL-105 x 1 or European test lead GTL-201 x 1, GTL-203 x 1, GTL-204 x 2 | |
| DIMENSIONS & WEIGHT | |
| 255 (W) x 145 (H) x 265 (D) mm Approx. 6kg | |
