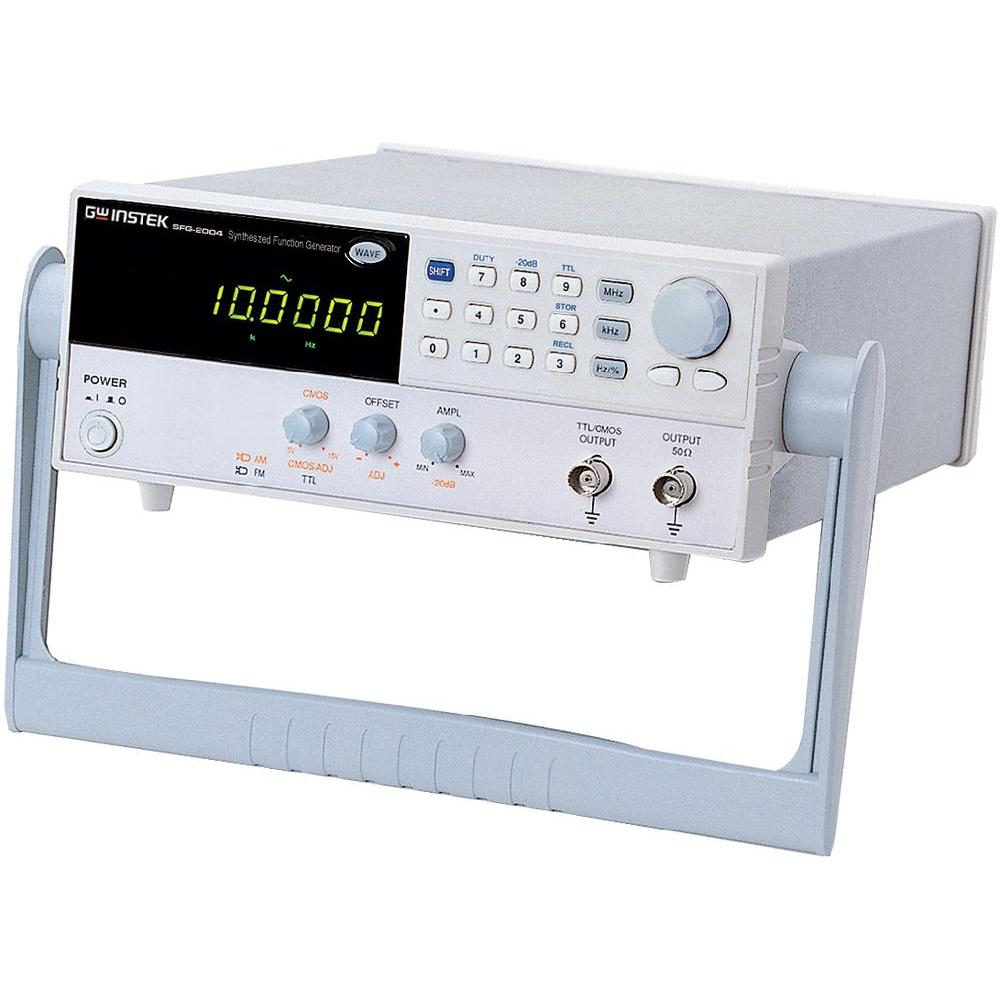

GW-INSTEK SFG-2010 DDS Function Generator (10MHz, 0.1 Hz)

Manufacturer: GW-INSTEK
Model: SFG-2010
Dimensions: 266(W)×107(H)×293(D) mm
Weight: 3.2 kg
Accessories: User Manual×1; Power Cord x 1; GTL-101 x 1(SFG-2000 Series); GTL-101× 2 (SFG-2110)
STORE/RECALL FUNCTION: 10 groups of panel settings
POWER SOURCE: AC115V±10%, AC 230V+10%/-15%, 50/60Hz
Warranty: 12 months

- Main

Frequency Range

Sine, Square: SFG-2004 : 0.1Hz ~ 4MHz

Triangle: 0.1Hz~1MHz

Frequency Resolution0.1Hz

Frequency Stability± 20 ppm

Frequency Accuracy± 20 ppm

Aging± 5 ppm /year

Output FunctionSine, Square, Triangle

Amplitude Range2mV~10Vpp(50Ω Load)

Impedance50Ω±10％

Attenuator-20dB±1dB×2

DC Offset＜-5V～＞+5V(50Ω Load)

Duty Cycle20% to 80%, 2Hz~1MHz (Only Square)

Range Resolution1%

Display9 位 LED display

- SINE WAVE

Harmonics Distortion-55dBc,0.1Hz～200kHz; -40dBc,0.2MHz～4MHz; -30dBc,4MHz～10MHz

Flatness(Relative to 1kHz)＜± 0.3dB,0.1Hz～1MHz; ＜± 0.5dB,1MHz～4MHz; ＜± 2dB, 4MHz～10MHz

- TRIANGLE WAVE

Linearity≧98％,0.1Hz～100kHz;≧95％,100kHz～1MHz

- SQUARE WAVE

Symmetry± 1% of period +4ns to 0.1Hz～100kHz

Rise or Fall Time≦25ns at maximum output.(into 50 load)

- CMOS Output

Level4Vpp±1Vpp～15Vpp±1Vpp adjustable; Rise or Fall Time ≦120ns

- TTL Output

Level≧3Vpp ; Fan out; 20 TTL Load ;Rise and Fall Time ≦25ns

STORE/RECALL FUNCTION

10 groups of panel settings
