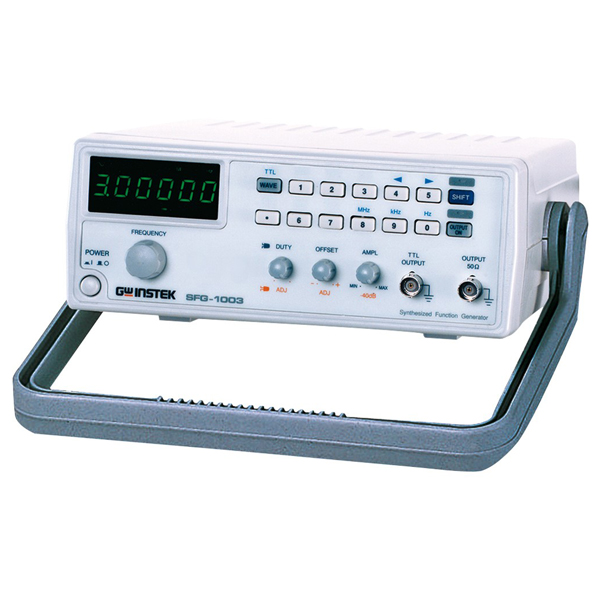

GW INSTEK SFG-1003 DDS Function Generator (3MHz, 0.1 Hz)

Dimensions: 251(W) x 91(H) x 291(D) mm
Weight: 2.1 kg
Accessories: User Manual×1; Power Cord x 1; GTL-101 x 1; GTL-101× 1
POWER SOURCE: AC 100V/120V/220V/240V±10%, 50/60Hz
Warranty: 12 months

- Main

Frequency Range

Sine, Square : 0.1Hz ~ 3MHz

Triangle: 0.1Hz~1MHz

Frequency Resolution0.1Hz

Frequency Stability± 20 ppm

Frequency Accuracy± 20 ppm

Aging± 5 ppm /year

Output FunctionSine, Square, Triangle

Impedance50Ω±10％

Attenuator-40dB±1dB×1

DC Offset＜-5V～＞+5V(50Ω Load)

Duty Cycle25% ~ 75% below 1MHz (for square wave only)

Display6 LED display

- SINE WAVE

Harmonics Distortion≧-55dBc, 0.1Hz ~ 200kHz

Flatness(Relative to 1kHz): ＜±0.3dB, 0.1Hz ~ 1MHz

- TRIANGLE WAVE

Linearity≧98％,0.1Hz～100kHz;≧95％,100kHz～1MHz

- SQUARE WAVE

Symmetry5% of period+4ns, 0.1Hz ~ 100kHz

Rise or Fall Time≦100ns at maximum output (into 50Ωload)

- TTL Output

Level≧3Vpp ; Fan out; 20 TTL Load ;Rise and Fall Time ≦25ns
