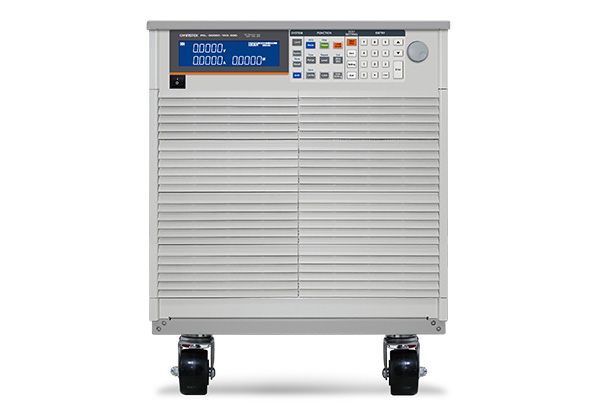

GW INSTEK PEL-5024C-150-2000 High Power Compact DC Load (24kW, 2000A, 150V)

Power: 24kW

Current: 0 ~ 200A/2000A

Voltage: 0 ~ 150V

Min.Operatting Voltage: 0.7V@2000A

Constant Current Mode

Range: 200A/2000A

Resolution: 3.2mA/ 32mA

Constant Resistance Mode

Range: 4500Ω ~ 0.075Ω/ 0.075Ω ~ 0.0004Ω

Resolution: 222.22uS/ 1.25uΩ

Constant Voltage Mode

Range: 150V

Resolution: 2.5mV

Constant Power Mode

Range: 2400W/ 24000W

Resolution: 38.4mW 384mW

Dimension(HxWxD): 884mm x 444mm x 763mm

Weight: 155KG

Optional accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-026 Hook ring

PEL-027 Rack mount kit

PEL-028 Handles
