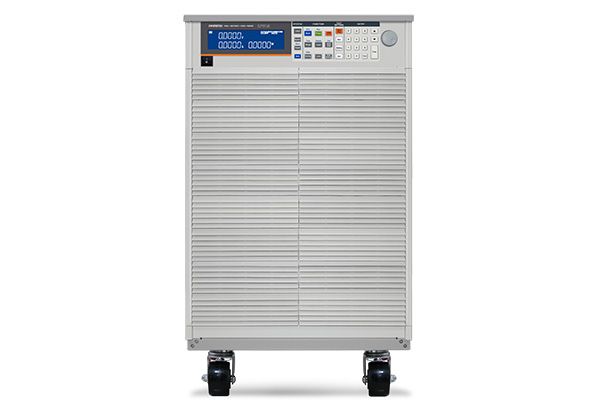

GW INSTEK PEL-5010C-1200-400 High Power Compact DC Load (10KW, 400A, 1200V)

Power: 10KW

Current: 0 ~ 40A/ 0 ~ 400A

Voltage: 0 ~ 1200V

Min.Operatting Voltage: 15V tại 400A

Constant Current Mode

Range: 40A/ 400A

Resolution: 0.64mA/ 6.4mA

Constant Resistance Mode

Range: 18KΩ ~ 3Ω / 3Ω ~ 0.0375Ω

Resolution: 5.5555uS /50uΩ

Constant Voltage Mode

Range: 1200V

Resolution: 20mV

Constant Power Mode

Range: 1000W/ 10000W

Resolution: 16mW 160mW

Dimension(HxWxD): 572mm x 444mm x 763mm

Weight: 84.8KG

Optional accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-026 Hook ring

PEL-027 Rack mount kit

PEL-028 Handles
