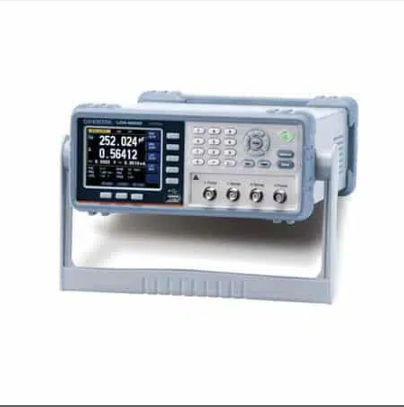

GW INSTEK LCR-6100 High Precision LCR Meter (100Khz, 0.05%)

Frequency range : 10 Hz ~ 100KHz

OUTPUT IMPEDANCE : 30Ω / 50Ω / 100Ω selectable

BASIC ACCURACY : Slow / Med 0.05%, Fast 0.1%

TEST SPEED : FAST: 25ms / MED: 100ms / SLOW: 333ms

TEST SIGNAL LEVELS

Voltage 10.00mV- 2.00V (±10%) CV :10.00mV- 2.00V(±6%)

Current 100.0uA- 20.00mA (±10%) CC :100.0uA- 20.00mA(±6%) (@2VMax)

DC BIAS : Internal ±2.5V (0.5%+0.005V)

DISPLAY RANGE

R,X,|Z| : 0.00001Ω ~ 99.9999MΩ

G,B,|Y| : 0.01nS ~ 999.999S

L : 0.00001uH ~ 9999.99H

C : 0.00001pF ~ 9999.99mF

D : 0.00001 ~ 9.99999

Q : 0.00001 ~ 99999.9

θd : -179.999° ~ 179.999°

θr : -3.14159 ~ 3.14159

DCR : 0.00001Ω ~ 99.9999MΩ

Δ% : -99999% ~ 99999%

TEST MODE : 16 Combinations Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q,

Rs-Q, Rp-Q, R-X, Z-θr, Z-θd, Z-D, Z-Q, DCR, Monitor parameter (2 selectable) Z, D, Q, Vac, Iac, Δ, Δ%, θr, θd, R, X, G, B, Y

LISTED MODE : 10 steps

BIN FUNCTION : Comparator (9BIN,AUX:1BIN)

MEMORY

INT – panel setting 10 file name

INT – measured data 10000 Data(.csv)

USB storage 10 file name for setting, 9999 file name for data, 999 Log file for LCD screen

OTHER FUNCTION : Auto Level Control (ALC) ON/OFF

Average 1~256 times

Trigger INT / MAN / EXT / BUS

Delay 0ms~60s

Judgment PASS / FAIL

Auto LCZ ON / OFF

Screen Capture Saving in to USB (Bmp form)

DISPLAY : 3.5’ LCD, RGB color (320x240)

INTERFACE : RS-232(SCPI), Handler, USB Host

POWER SOURCE : AC 90V-250V, 50-60Hz, Max. 30VA

DIMENSION & WEIGHT : 265(W)x107(H)x312(D) mm, Approx. 3kg

Optional Accessories

LCR-05 Test Fixture for Axial & Radial Lead Components

LCR-06A Kelvin Clip Test Lead

LCR-07 Test Fixture, Two-Wire with Alligator Clips

LCR-08 Test Fixture (Tweezers) for SMD/Chip Components

LCR-15 Test Fixture for SMD/Chip Components (0201 to 1812)

LCR-16 Test Fixture – ±45V DC Bias Voltage Box

LCR-17 Test Fixture – ±2.5A DC Bias Current Box

GTL-232 RS-232C Cable, 9-pin Female to 9-pin, null Modem for Computer, Approx. 2m
