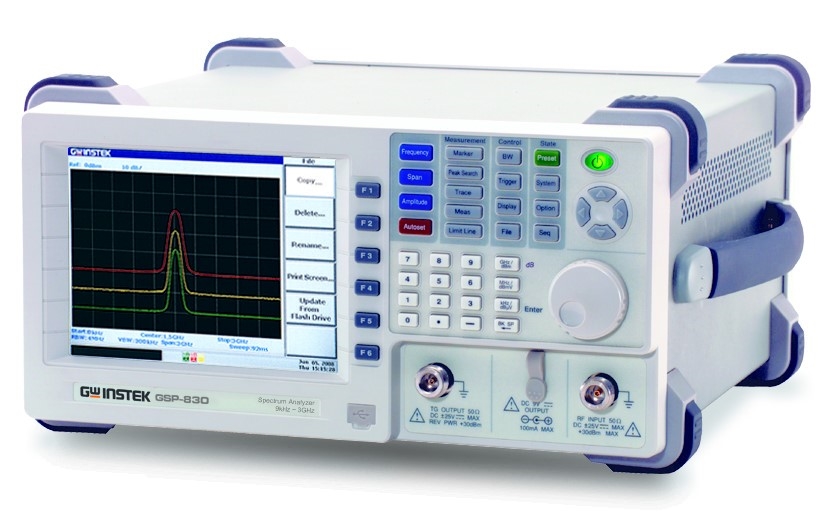

GW instek GSP-830 Spectrum Analyzers (9kHz ~ 3Ghz, Tracking Generator)
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelSP-830
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
REQUENCY | |
Frequency Range | 9kHz ~ 3GHz |
Aging Rate | ± 10ppm, 0~50°C, 5ppm/yr |
Span Range | 2kHz ~ 3GHz in 1-2-5 sequence, full span, zero span |
Phase Noise | -80dBc/Hz @1GHz 20kHz offset typical |
Sweep Time Range | 50ms ~ 25.6s |
RESOLUTION BANDWIDTH | |
RBW Range | 3kHz, 30kHz, 300kHz, 4MHz |
RBW Accuracy | 15% |
Video Bandwidth Range | 10Hz ~ 1MHz in 1-3 steps |
AMPLITUDE | |
Measurement Range | -103dBm ~ +20dBm: 1MHz ~ 15MHz, Ref.Level @ -30dBm -117dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm -114dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm (Span = 50kHz, RBW = 3kHz) |
Overload Protection | Max. +30dBm, ±25VDC |
Reference Level Range | -110dBm ~ +20dBm |
Accuracy | ±1dB @100MHz |
Frequency Flatness | ±1dB |
Display Range Linearity | ±1dB over 70dB |
DYNAMIC RANGE | |
Average Noise Floor | <-135±1dBm/Hz: 1MHz ~ 15MHz, Ref.Level @ -30dBm <-149dBm/Hz, typical -152dBm/Hz: 15MHz ~ 1GHz, Ref.Level ≧-110dBm <-146dBm/Hz, typical -149dBm/Hz: 1GHz ~ 3GHz, Ref.Level ≧-110dBm |
Third Inter-Modulation | <-70dbc rf="" input="" -40dbm="" ref="" level="" -30dbm="" span=""> |
Harmonic Distortion | <-60dbc rf="" input="" -40dbm="" typical="" ref="" level="" -30dbm="" span=""> |
Non-Harmonic Spurious | <-93dBm, 1MHz ~ 15MHz, Ref.Level @-30dBm <-107dbm 20dbm:="" 15mhz="" 1ghz="" ref="" level="" -110dbm="" br=""> |
GENERAL | |
Display | 640 x 480 high resolution TFT color LCD |
Split Windows | Active Window: Upper, Lower or Alternate (two simultaneously sweeping windows) |
Markers | 10 Markers for peaks: 5 normal-delta marker pairs Functions: Delta, To Peak, To Minimum, Peak Track, Peak Table, Peak Sort |
Trace Detection | 3 traces with Peak, Maximum hold, Freeze, Average, Trace math |
Power Measurement | ACPR, OCBW, Channel Power, N dB and Phase Jitter |
Autoset Function | Auto tuning the measurement result for observation |
Trigger | Conditions: Video, External (Positive-going, +5V TTL external signal) Mode: Normal, Single, Continuous |
Sequence | Automated test by user-defined macros without any remote controller, 10 Sequential macro set and 10 macros per each set, Variable delays and wait-to-go facilitate automated measurement, Do-sequence links and nests different sequence sets. |
CONNECTORS | |
RF Input | N female, 50Ω nominal RF input VSWR: <2:1, @0dBm Reference Level |
External Reference | Type: BNC female |
Clock Input | 1M, 1.544M, 2.048M, 5M, 10M, 10.24M, 13M, 15.36M, 15.4M, 19.2MHz |
Reference Clock Output | Type: BNC female, 10MHz |
DC Input (DC Power Operation) | Jack : 5.5mm, 12V |
DC Output (for GAP-801) | Type: SMB Male, outputs +9V/100mA Max. |
INTERFACE | |
RS-232C | Sub-D 9 pins female |
USB Connector | USB Host/Device full speed supported |
VGA Output | Front panel: Type A receptacle for USB flash devices |
Option: GPIB Interface | Fully programmable with IEEE 488.2 compliance |
POWER SOURCE | |
AC 100 ~ 240V, 50/60Hz | |
ACCESSORIES | |
User Manual x 1 Power Cord x 1 USB Cable (Type A plug to Type mini-B plug) x1 | |
DIMENSIONS & WEIGHT | |
330(W) x 170(H) x 340(D) mm Approx. 6kg | |
