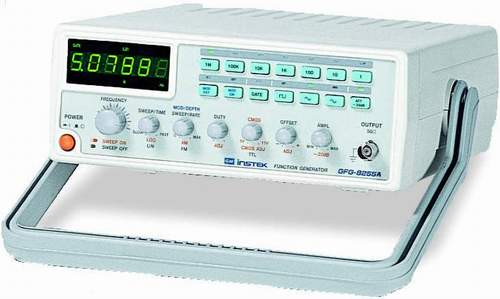

Gw-Instek GFG-8250A Analog Function Generator 5MHz
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelGFG-8250A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
GFG-8250A | ||
| MAIN | ||
| Frequency Range | 0.5Hz ~ 5MHz (7 Range) | |
| Amplitude | >10Vpp (into 50Ω load) | |
| Impedance | 50Ω±10% | |
| Attenuator | -20dB±1dBx2 | |
| DC Offset | <-5v>5V (into 50Ω load) | |
| Duty Control | 80% ~ 20%, maximum 1MHz (continuously adjustable) | |
| Display | 6 digits LED display *GFG-8215A does not have a display | |
| Range Accuracy | ±5%+1Hz (at 3 positions) *only for GFG-8215A | |
| SINE WAVE | ||
| Distortion | < 1%, 0.5Hz ~ 100kHz | |
| THD (Total Harmonic Distortion) | < 30dB, below fundamental in all ranges, from Max to 1/10 level | |
| Flatness | < 0.3dB, below 500kHz < 1dB, below 5MHz | |
| TRIANGLE WAVE | ||
| Linear | > 98%, 0.5Hz ~ 100kHz > 95%, 100kHz ~ 5MHz | |
| SQUARE WAVE | ||
| Symmetry | ±2%, 1Hz ~ 100kHz | |
| Rise or Fall Time | < 50nS at maximum output (into 50Ω load) | |
| CMOS OUTPUT | ||
| Level | 4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustable | |
| Rise or Fall Time | < 120nS | |
| TTL OUTPUT | ||
| Level | > 3Vpp | |
| Fan Out | 20 TTL load | |
| Rise or Fall Time | < 25nS | |
| VCF (Voltage Controlled Frequency) | ||
| Input Voltage | 0V ~ 10V±1V (100 : 1) | |
| Input Impedance | 10kΩ±10% | |
| FREQUENCY COUNTER (GFG-8216A/8217A/8219A/8250A/8255A) | ||
| INT/EXT | Switch selector | |
| Range | 0.3Hz ~ 3MHz (5Hz ~ 150MHz EXT) | 0.5Hz ~ 5MHz (5Hz ~ 150MHz EXT) |
| Accuracy | Time base accuracy±1 count | |
| Time Base | ±20ppm(23° C ± 5° C)after 30 minutes warm up | |
| Resolution | 100nHz for 1Hz, 1Hz for 100MHz | |
| Input Impedance | 1MΩ // 150pF | |
| Sensitivity | < 35mVrms (5Hz ~ 100MHz) | |
| POWER SOURCE | ||
| AC115V/230V±15%, 50 / 60Hz | ||
| DIMENSIONS & WEIGHT | ||
251(W) x 91(H) x 291(D)mm Approx. 2.3 kg (GFG-8250A) Approx. 2.4 kg (GFG-8255A) | ||
