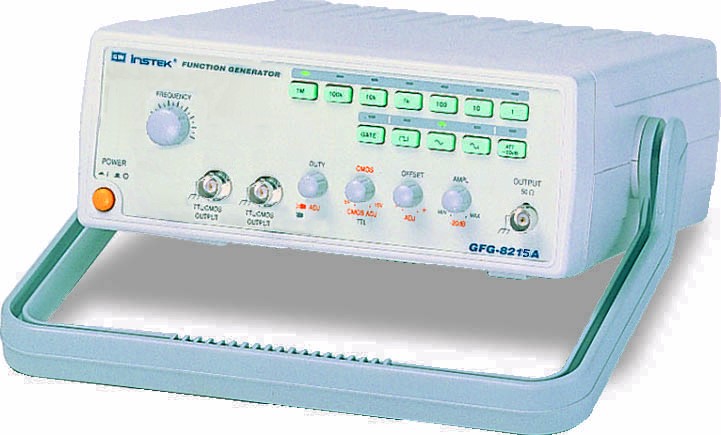

GW INSTEK GFG-8215A Analog Function Generator (3Mhz)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
GFG-8215A | ||
| MAIN | ||
| Frequency Range | 0.3Hz ~ 3MHz (7 Range) | |
| Amplitude | >10Vpp (into 50Ω load) | |
| Impedance | 50Ω±10% | |
| Attenuator | -20dB±1dBx2 | |
| DC Offset | <-5v>5V (into 50Ω load) | |
| Duty Control | 80% ~ 20%, maximum 1MHz (continuously adjustable) | |
| Display | 6 digits LED display *GFG-8215A does not have a display | |
| SINE WAVE | ||
| Distortion | < 1%, 0.3Hz ~ 200kHz | |
| THD (Total Harmonic Distortion) | < 35dB, below fundamental in all ranges, from Max to 1/10 level | |
| Flatness | < 0.3dB, 0.3Hz ~ 300kHz < 0.5dB, 300kHz ~ 3MHz | |
| TRIANGLE WAVE | ||
| Linear | > 98%, 0.3Hz ~ 100kHz > 95%, 100kHz ~ 3MHz | |
| SQUARE WAVE | ||
| Symmetry | ±2%, 0.3Hz ~ 100kHz | |
| Rise or Fall Time | < 100nS at maximum output (into 50Ω load) | |
| CMOS OUTPUT | ||
| Level | 4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustable | |
| Rise or Fall Time | < 120nS | |
| TTL OUTPUT | ||
| Level | > 3Vpp | |
| Fan Out | 20 TTL load | |
| Rise or Fall Time | < 25nS | |
| VCF (Voltage Controlled Frequency) | ||
| Input Voltage | 0V ~ 10V±1V (100 : 1) | |
| Input Impedance | 10kΩ±10% | |
| POWER SOURCE | ||
| AC115V/230V±15%, 50 / 60Hz | ||
| DIMENSIONS & WEIGHT | ||
251(W) x 91(H) x 291(D)mm Approx. 2.0 kg(GFG-8215A) Approx. 2.1 kg(GFG-8216A) Approx. 2.15kg(GFG-8217A) Approx. 2.2 kg(GFG-8219A) | 251(W) x 91(H) x 291(D)mm Approx. 2.3 kg (GFG-8250A) Approx. 2.4 kg (GFG-8255A) | |
