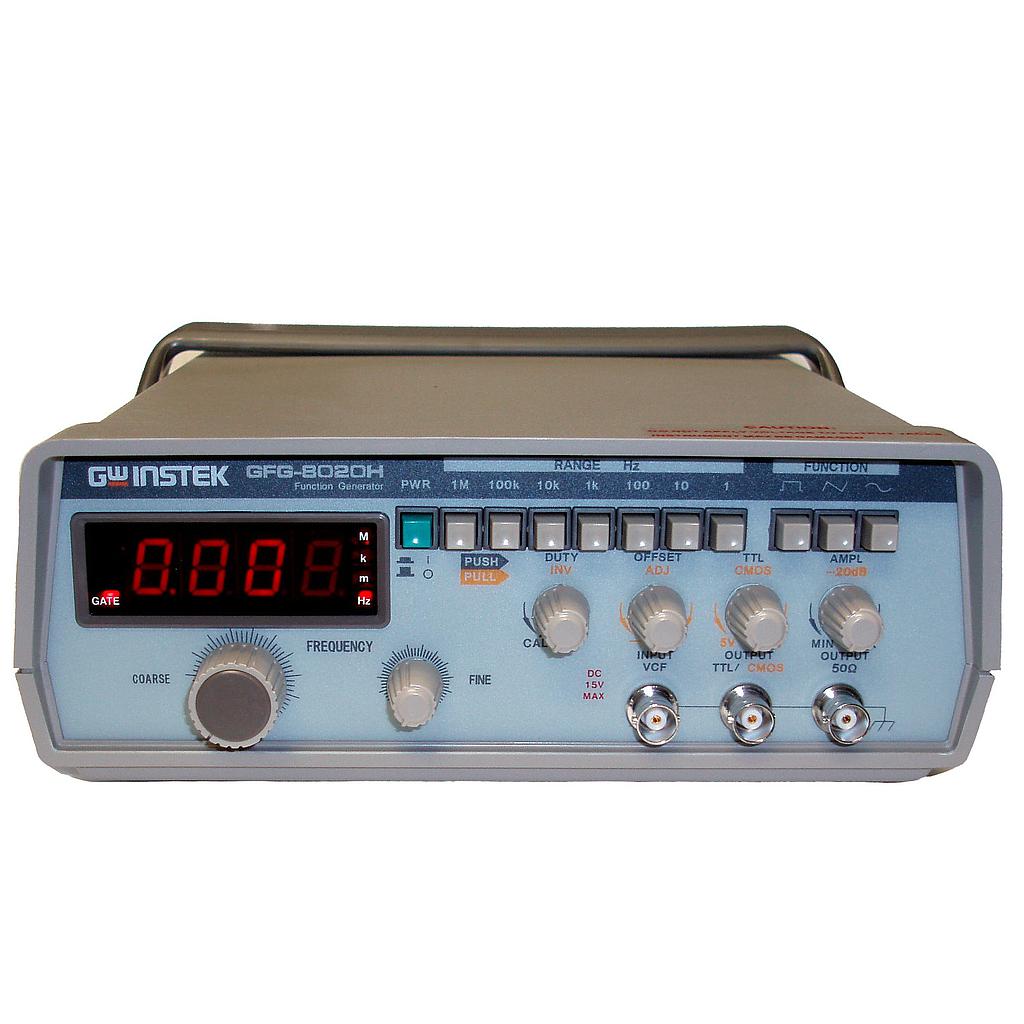

Gw-Instek GFG-8020H Analog Function Generator 2MHz

- MAIN OUTPUT

Waveform:SINE, TRIANGLE, SQUARE, TTL pulse and CMOS
output Amplitude: >20Vp-p (open circuit )
Impedance: 50Ω±10%
Attenuator: -20dB±1dB (at 1kHz)
DC Offset: <-10v to="">+10V (<-5v to="">+5V into 50Ω load)
Duty Control: 1:1 to 10:1 continuously adjustable
Display: 4 digits LED display
Frequency Range: 0.2Hz to 2MHz- 7 ranges
Frequency ControlSeparate: coarse and fine tuning

- SINE WAVE
Distortion: <1% (0.2Hz ~ 20kHz)
<2% (20kHz ~ 200kHz)
Flatness Response: <0.2db 0="" 2hz="" 100khz="" br=""> <1db 100khz="" 2mhz="" p="">

- TRIANGLE WAVE
Linear: 98%, 0.2Hz ~ 100kHz
95%, 100kHz ~ 2MHz

- SQUARE WAVE:
Symmetry<2%, 0.2Hz ~ 100kHz
Rise / Fall Time<120nS

- CMOS OUTPUT: Level4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustableRise / Fall Time< 120nS

- TTL OUTPUT: Level : > 3Vpp; Rise / Fall Time: < 30nS

- VCF
Input VoltageApprox. 0V ~ 10V(±1V) input for 10:1 frequency ratioInput Impedance10kΩ±10%

- FREQUENCY COUNTER
Range: 0.2Hz ~ 2MHz
Accuracy: Time base accuracy±1 count
Time Base: Oscillation frequency 3.58MHz, Temp. stability ±20ppm(23° C ± 5° C)
Resolution: 0.1Hz, 1Hz, 10Hz, 100Hz, 1kHz

POWER SOURCE: AC100V/120V/220V/230V±10%, 50/60Hz

ACCESSORIES

User manual x 1
Power cord x 1
Test lead GTL-101 x 1
DIMENSIONS & WEIGHT 230(W) x 95(H) x 280(D)mm
Approx. 2.1 kg
