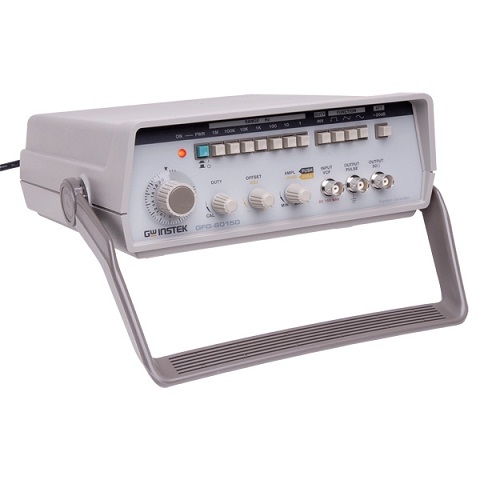

Gw-Instek GFG-8015G Analog Function Generator 2MHz

- MAIN OUTPUT

Waveform:SINE, TRIANGLE, RAMP, SQUARE, and TTL pulse output
output Amplitude: >20Vp-p (open circuit )
Impedance: 50Ω±10%
Attenuator: -20dB±1dB (at 1kHz)
DC Offset: <-10v to="">+10V (<-5v to="">+5V into 50Ω load)
Duty Control: 1:1 to 10:1 continuously adjustable
Frequency Range: 0.2Hz to 2MHz- 7 ranges

- SINE WAVE
Distortion: <1% (0.2Hz ~ 20kHz)
Flatness Response: <0.1db 0="" 2hz="" 100khz="" br=""> <0.5db 100khz="" 2mhz="" p="">

- TRIANGLE WAVE
Linear: 98%, 0.2Hz ~ 100kHz
95%, 100kHz ~ 2MHz

- SQUARE WAVE:
Symmetry<2%, 0.2Hz ~ 100kHz
Rise / Fall Time<100nS

- TTL OUTPUT: Level : > 3Vpp; Rise / Fall Time: < 25nS

- VCF
Input VoltageApprox. 0V ~ 10V(±1V) input for 10:1 frequency ratioInput Impedance10kΩ±10%

POWER SOURCE: AC100V/120V/220V/230V±10%, 50/60Hz

ACCESSORIES

User manual x 1
Power cord x 1
Test lead GTL-101 x 1
DIMENSIONS & WEIGHT 230(W) x 95(H) x 280(D)mm
Approx. 2.1 kg
