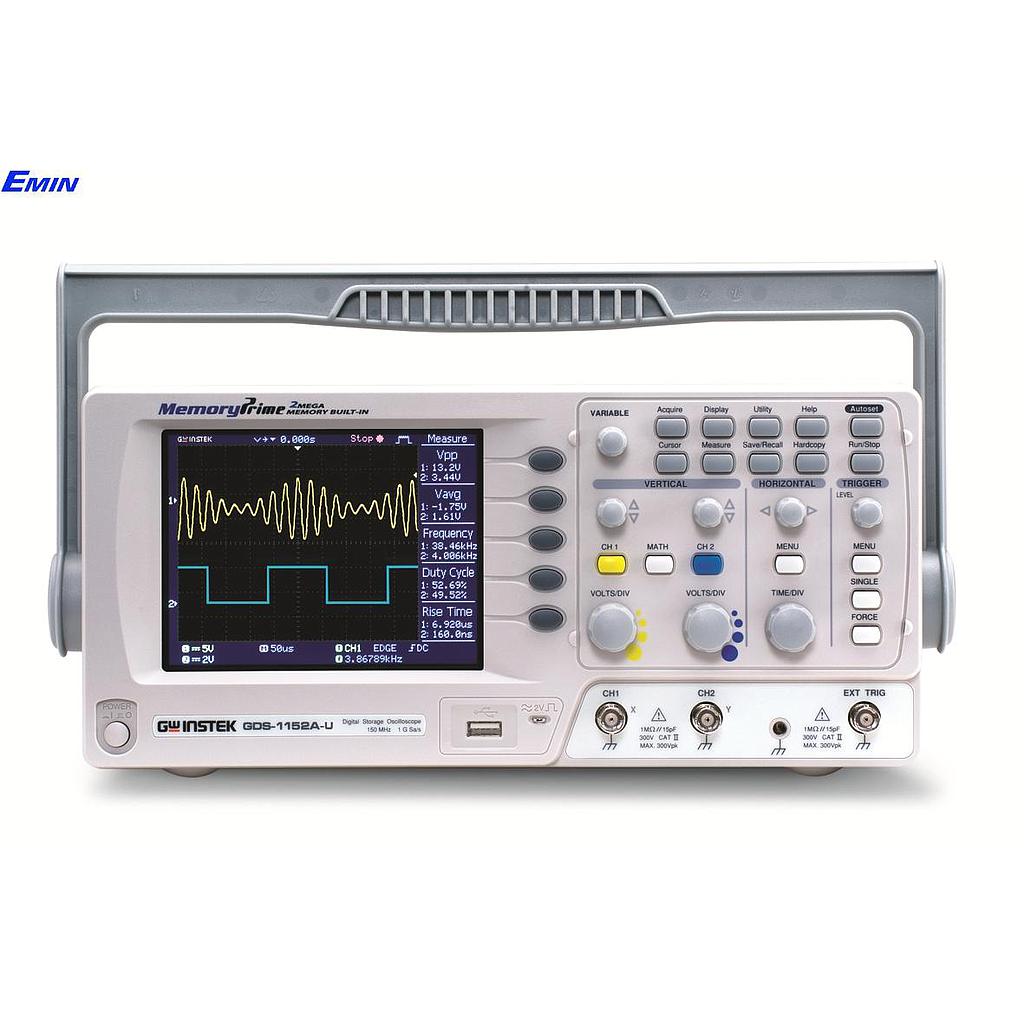

GW INSTEK GDS-1102A-U Digital Oscilloscope (100Mhz, 2CH, 1Gsa/s)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
GDS-1102A-U
| |||
| VERTICAL | |||
| Channels | 2
| ||
| Bandwidth | DC
~100MHz(-3dB)
| ||
| Rise Time | <3.5ns approx="" span=""> | ||
| Sensitivity | 2mV/div ~ 10V/div (1-2-5 increments) | ||
| Accuracy | ±(3% x |Readout| + 0.1 div + 1mV) | ||
| Input Coupling | AC, DC & Ground | ||
| Input Impedance | 1MΩ±2%, ~15pF | ||
| Polarity | Normal & Invert | ||
| Maximum Input | 300V (DC+AC peak), CATII | ||
| Waveform Signal Process | + , - , x, FFT, FFTrms ,Zoom FFT | ||
| Offset Range | 2mV/div ~ 50mV/div: ±0.4V 100mV/div ~ 500mV/div: ±4V 1V/div ~ 5V/div: ±40V 10V/div: ±300V | ||
| Bandwidth Limit | 20MHz (-3dB) | ||
| TRIGGER | |||
| Sources | CH1 , CH2 , Line , EXT | ||
| Modes | Auto, Normal, Single, TV, Edge, Pulse Width | ||
| Coupling | AC , DC , LF rej. , HF rej. , Noise rej. | ||
| Sensitivity | DC ~ 25MHz: Approx. 0.5div or 5mV; 25MHz ~ 70/100/150MHz: Approx. 1.5div or 15mV | ||
| EXT TRIGGER | |||
| Range | ±15V | ||
| Sensitivity | DC ~ 25MHz : ~ 50mV ; 25M ~ 70/100/150MHz : ~15mV | ||
| Input Impedance | 1MΩ±2% , ~ 15pF | ||
| Maximum Input | 300V (DC AC peak) , CATII | ||
| HORIZONTAL | |||
| Range | 1ns/div ~ 50s/div (1-2.5-5 increments); ROLL : 50ms/div ~ 50s/div | ||
| Modes | Main, Window, Window Zoom, Roll, X-Y | ||
| Accuracy | ±0.01% | ||
| Pre-Trigger | 10 div maximum | ||
| Post-Trigger | 1000 div | ||
| X-Y MODE | |||
| X-Axis Input | Channel 1 | ||
| Y-Axis Input | Channel 2 | ||
| Phase Shift | ±3°at 100kHz | ||
| SIGNAL ACQUISITION | |||
| Real-Time Sample Rate | 1GSa/s maximum | ||
| Equivalent Sample Rate | 25GSa/s maximum | ||
| Vertical Resolution | 8 Bits | ||
| 2 Mega Points maximum | |||
| Acquisition Mode | Normal, Peak Detect, Average | ||
| Peak Detection | 10ns (500ns/div ~ 10s/div) | ||
| Average | 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 | ||
| CURSORS AND MEASUREMENT | |||
| Voltage Measurement | Vpp ,Vamp ,Vavg ,Vrms ,Vhi ,Vlo ,Vmax ,Vmin ,Rise Preshoot/Overshoot ,Fall Preshoot/Overshoot | ||
| Time Measurement | Freq ,Period ,Rise Time ,Fall Time ,Positive Width ,Negative Width ,Duty Cycle | ||
| Cursors Measurement | Voltage difference between cursors (V) Time difference between cursors (T) | ||
| Auto Counter | Resolution : 6 digits Accuracy: 2% Signal Source: All available trigger source except the Video trigger mode | ||
| ADJUSTABLE PROBE COMPENSATION SIGNAL | |||
| Frequency Range | 1kHz ~ 100kHz, 1kHz/STEP | ||
| Duty Cycle Range | 5% ~ 95%, 5%/STEP | ||
| CONTROL PANEL FUNCTION | |||
| Autoset | Adjust Vertical VOLT/DIV, Horizontal TIME/DIV, and Trigger level automatically | ||
| Save Setup | Up to 15 sets of measurement conditions | ||
| Save Waveform | 15 sets of waveform | ||
| DISPLAY | |||
| TFT LCD Type | 5.7 inch | ||
| Display Resolution | 234(Vertically) x 320(Horizontally) Dots | ||
| Display Graticule | 8 x 10 divisions | ||
| Display Brightness | Adjustable | ||
| INTERFACE | |||
| USB Device | USB1.1 & 2.0 full speed compatible (Pictbridge Compatibility Printers Supported) | ||
| USB Host | Image (BMP), waveform data (CSV), and setup (SET) | ||
| POWER SOURCE | |||
| Line Voltage Range | AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection | ||
| MISCELLANEOUS | |||
| Multi-Language Menu | Available | ||
| Onscreen Help | Available | ||
| DIMENSIONS & WEIGHT | |||
| 310(W) x 142 (H) x 140(D)mm, Approx. 2.5kg | |||
