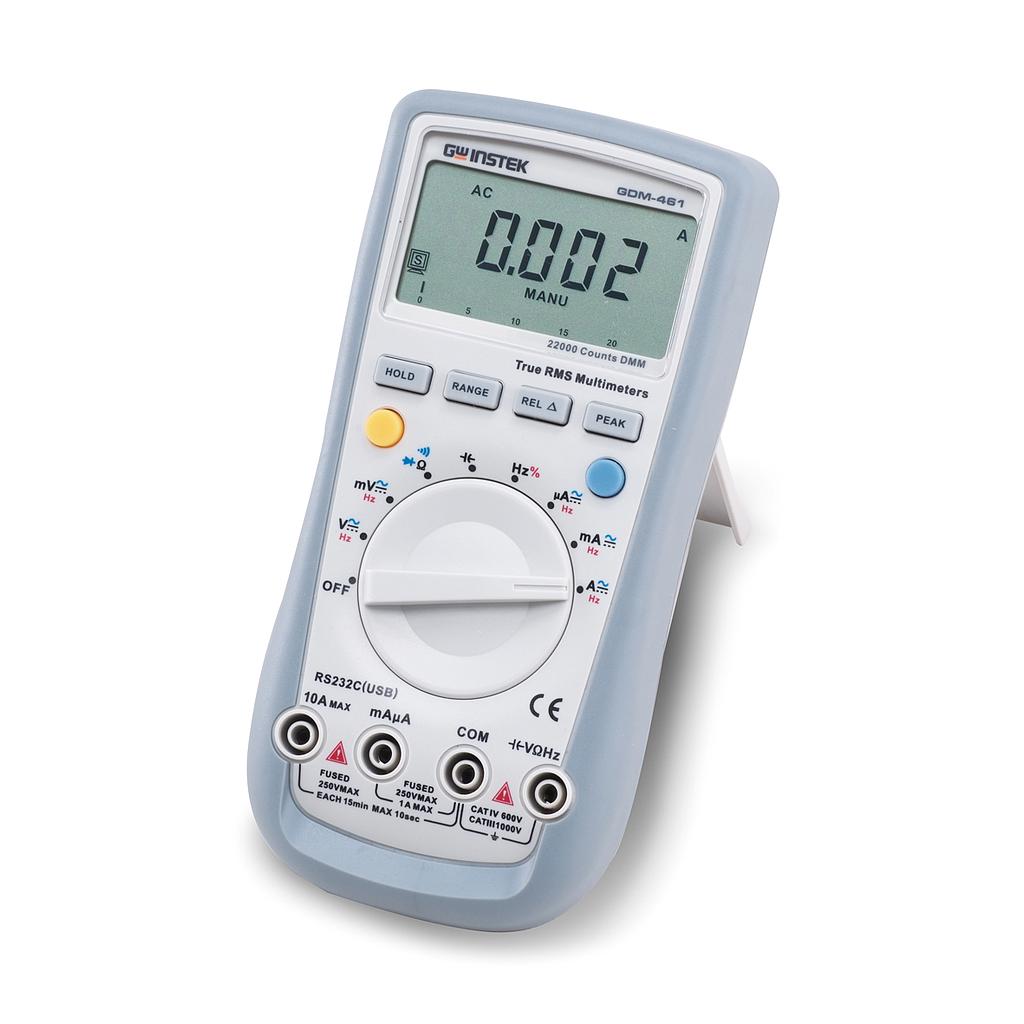

GW INSTEK GDM-461 MultiMetter
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power cord x 1
Test lead GTL-104A x 3
Test lead GTL-104A x 3
-DC VOLTAGE
Range: 220mV, 2.2V, 22V, 220V, 1000V(GDM-461)
Best Accuracy: ±(0.1%rdg + 2 digits)
Input Impedance: 10 MΩ
- AC VOLTAGE
Range: 220mV, 2.2V, 22V, 220V, 750V
Best Accuracy: ±0.8%
Input Impedance: 10 MΩ
- DC CURRENT
Range: 220µA, 2200µA, 22mA, 220mA, 10A
Best Accuracy: ±0.5%
- AC CURRENT
Range: 220µA, 2200µA, 22mA, 220mA, 10A
Best Accuracy: ±0.8%
- RESISTANCE
Range: 220Ω ~ 220MΩ 7 ranges
Best Accuracy: ±(0.5%rdg + 10 digits)
- CAPACITANCE
Range: 22nF, 220nF, 2.2µF, 22µF, 220µF, 2.2mF, 22mF, 220mF
Best Accuracy: ±(3.0%rdg + 5 digits)
- FREQUENCY
Range: 10Hz ~ 220MHz
Best Accuracy: ±(0.01%rdg + 5 digits)
- DIODE TEST: Open Circuit Voltage: 2.8V (Approx.)
- CONTINUITY BEEPER: Buzzer sounds if conductance less than 10Ω
- SPECIAL FUNCTION
Auto Ranging ; True RMS ; RS-232C; Analog Bar;
- LCD DISPLAY: 22000 counts
- POWER SOURCE: Single 9V Battery (6F22)
- DIMENSIONS & WEIGHT
87(W) x 180(H) x 47(D) mm, Approx. 370g
