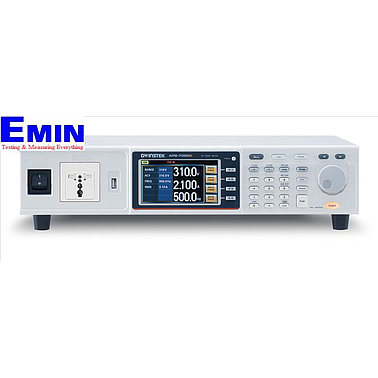

GW INSTEK APS-7200 Programmable AC Power Sources (2kVA, 500Hz)

Power Rating : 2000VA

Output Voltage 0 ~ 155Vrms, 0 ~ 310Vrms

Output Frequency 45.00 ~ 500.0 Hz

4.3-inch TFT-LCD

Output capacity : APS-7050(500VA、310Vrms、4.2Arms),

APS-7100 (1000VA、310Vrms、8.4Arms),

APS-7200(2000VA、310Vrms、16.8Arms),

APS-7300 (3000VA、310Vrms、25.2Arms);

Output augmentation by options (0~600Vrms/45~999.9Hz)

Low Ripple & Noise

Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF

Support a small AC current measurement 2mA ~ 35A,

Min. resolution 0.01mA(APS- 7050& APS-7100)

Reverse Current Alarm Function

10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate

mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode

to Define Measurement Sequence/ 10 sets of Panel Memory Function

Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on

Standard Interfaces: USB Host, USB Device, LAN, GPIB (APS-001)
