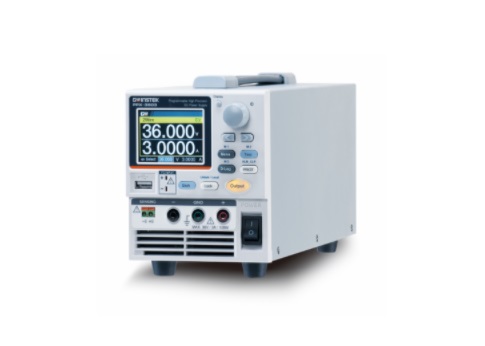

GW INSTEK PPX-10H01 Programmable high precision DC power supply (0~100V/0~1A/ 100W)

DC Output Mode

Output voltage: 10.000V

Output current: 5.0000A

Output power: 50W

CONSTANT VOLTAGE OPERATION

Line regulation: ±(0.01% of setting +1mV)

Load regulation: ±(0.01% of setting +2mV)

CONSTANT CURRENT OPERATION

Line regulation: ±(0.02% of setting + 250uA)

Load regulation: ±(0.02% of setting + 250uA)

Measurement and Display

Voltage Range: H 10.000V

L 1.0000V

Current Range

H 5.0000A

M 500.00mA

L 50.000mA

LL 5.0000mA

Dimensions (mm) & Weight: 107(W)×124(H)×313(D) (not including protrusions)，Approx. 5.5kg

Operating temperature: 0˚ C to 40˚ C

Storage temperature: -20˚ C to 70˚ C

Operating humidity: 20% to 80% RH; No condensation

Storage humidity: 20% to 85% RH; No condensation

Standard Accessories

CD (User Manual) x 1, Power Cord x 1, Test Lead x 1

Optional Accessories

GTL-258 GPIB Cable, 2000mm

GTL-259 RS-232 Cable with DB9 Connector to RJ45

GTL-260 RS-485 Cable with DB9 Connector to RJ45

GTL-262 RS-485 slave cable

GTL-246 USB Cable(USB 2.0 Type A-Type B Cable, 4P

GTL-205A Temperature probe Adapter (thermal coupling, K-Type), about 1000mm

GRA-441-J Rack for PPX Series(JIS)

GRA-441-E Rack for PPX Series(EIA)

PPX-G GPIB Interface(factory installed)
