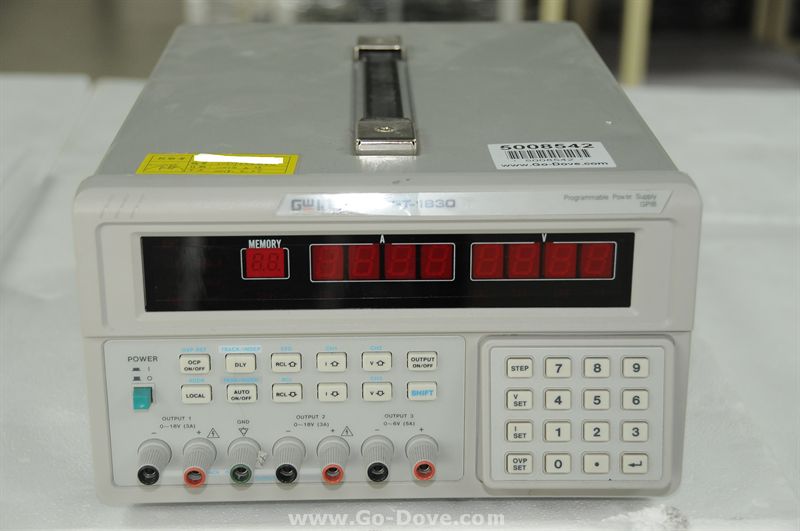

GW INSTEK PPT-1830 Programmable Linear D.C. Power Supply (18V, 5A, 138W, 3 CH)
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelPPT-1830
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Replaced by GPP-3323
-
-
Power cord x 1
Test lead GTL-104A x 3
Test lead GTL-104A x 3
| PPT-1830 | ||
| OUTPUT | ||
| Voltage | 0~18Vx2, 0~6Vx1 | |
| Current | 0~3Ax2, 0~5Ax1 | |
| OVP | 0~20Vx2, 0~7Vx1 | |
| LOAD REGULATION | ||
| Voltage | < 3mV rear output ( < 6mV front output ) | |
| Current | < 3mA ( < 6mA rating current > 3.5A ) | |
| LINE REGULATION | ||
| Voltage | < 3mV | |
| Current | < 3mA | |
| RESOLUTION | ||
| Voltage | 10mV ( 20mV rating voltage > 36V ) | |
| Current | 1mA ( 2mA rating current >3.5A ) | |
| OVP | 10mV( 20mV rating voltage > 36V ) | |
| PROGRAM ACCURACY (25±5° C) | ||
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36 V ) | |
| Current | < 0.2% + 10mA | |
| OVP | < 2% + 0.6V | |
| RIPPLE & NOISE (20Hz ~ 20MHz) | ||
| Voltage | Ripple 1mVrms / 3mVp-p Noise 2mVrms / 30mVp-p | |
| Current | < 3mA rms ( < 5mA rms rating current > 3.5A ) | |
| TEMPERATURE (0~40° C ) COEFFICIENT | ||
| Voltage | < 100ppm + 3mV | |
| Current | < 150ppm + 3mA | |
| READBACK RESOLUTION | ||
| Voltage | 10mV ( 20mV rating voltage > 36V ) | |
| Current | 1mA ( 2mA rating current > 3.5A ) | |
| READBACK ACCURACY (25±5° C) | ||
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36V ) | |
| Current | < 0.2% + 10mA | |
| RESPONSE TIME | ||
| Voltage Up(10%~90%) | < 100mS | |
| Voltage Down(90%~10%) | < 100mS (≧ rating road) | |
| READBACK TEMPERATURE COEFFICIENT | ||
| Voltage | < 100ppm + 10mV ( + 20mV rating voltage > 36V ) | |
| Current | < 150ppm + 10mA | |
| DRIFT | ||
| Voltage | < 0.03% + 6mV | |
| Current | < 0.1% + 6mA | |
| TRACK OPERATION | ||
| Tracking Error | < 0.1% + 50mV | |
| Series Regulation | < 50mV | |
| PARALLEL OPERATION | ||
| Program Accuracy (25±5° C) | Voltage < 0.05% + 25mV ( + 50mV rating voltage > 36V ) Current < 0.2% + 20mA OVP < 2% + 0.6V | |
| Load Effect | Voltage < 3mV rear output ( < 6mV front output ) Current < 6mA ( < 12mA rating current > 3.5A ) | |
| Source Effect | Voltage < 3mV Current < 6mA | |
| MEMORY | ||
| Store / Recall 50 sets | ||
| TIMER | ||
| Setting time | 1 sec ~ 255 min ( Max 255 min x 50 sets) | |
| Resolution | 1 sec | |
| Function | for output working loop ( Auto Step Running) | |
| INTERFACE | ||
| GPIB | ||
| POWER SOURCE | ||
| AC100V/120V/220V/240V±10%, 50/60Hz | ||
| DIMENSIONS & WEIGHT | ||
| 255(W) x 145(H) x 346(D)mm Approx. 10 kg | ||
