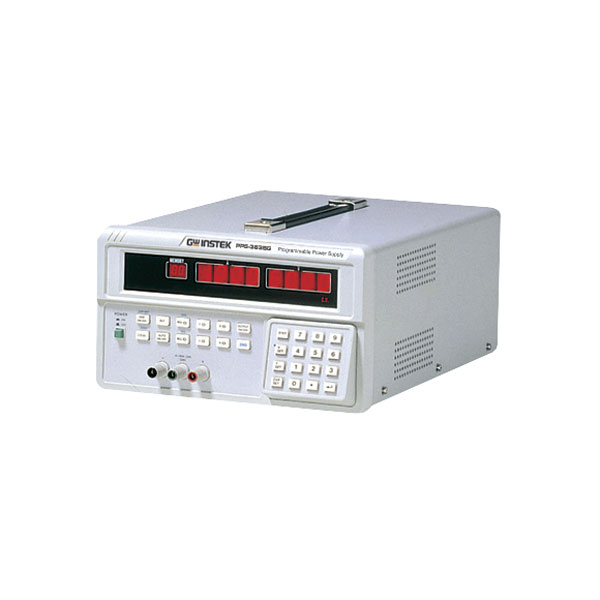

GW INSTEK PPS-3635 Programmable Linear D.C. Power Supply (36V, 3.5A, 126W, 1 CH)
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelPPS-3635
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
-
Power cord x 1
Test lead GTL-104 x 1
Test lead GTL-104 x 1
OUTPUT | ||||
| Voltage | 0~36V | |||
| Current | 0~3.5A | |||
| OVP | 0~38.5V | |||
LOAD REGULATION | ||||
| Voltage | < 3mV rear output ( < 6mV front output ) | |||
| Current | < 3mA ( < 6mA rating current > 3.5A ) | |||
LINE REGULATION | ||||
| Voltage | < 3mV | |||
| Current | < 3mA | |||
RESOLUTION | ||||
| Voltage | 10mV ( 20mV rating voltage > 36V ) | |||
| Current | 1mA ( 2mA rating current >3.5A ) | |||
| OVP | 10mV( 20mV rating voltage > 36V ) | |||
PROGRAM ACCURACY (25±5° C) | ||||
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36 V ) | |||
| Current | < 0.2% + 10mA | |||
| OVP | < 2% + 0.6V | |||
RIPPLE & NOISE (20Hz ~ 20MHz) | ||||
| Voltage | Ripple 1mVrms / 3mVp-p Noise 2mVrms / 30mVp-p | |||
| Current | < 3mA rms ( < 5mA rms rating current > 3.5A ) | |||
TEMPERATURE (0~40° C ) COEFFICIENT | ||||
| Voltage | < 100ppm + 3mV | |||
| Current | < 150ppm + 3mA | |||
READBACK RESOLUTION | ||||
| Voltage | 10mV ( 20mV rating voltage > 36V ) | |||
| Current | 1mA ( 2mA rating current > 3.5A ) | |||
READBACK ACCURACY (25±5° C) | ||||
| Voltage | < 0.05% + 25mV ( + 50mV rating voltage > 36V ) | |||
| Current | < 0.2% + 10mA | |||
RESPONSE TIME | ||||
| Voltage Up(10%~90%) | < 100mS | |||
| Voltage Down(90%~10%) | < 100mS | |||
READBACK TEMPERATURE COEFFICIENT | ||||
| Voltage | < 100ppm + 10mV ( + 20mV rating voltage > 36V ) | |||
| Current | < 150ppm + 10mA | |||
DRIFT | ||||
| Voltage | < 0.03% + 6mV | |||
| Current | < 0.1% + 6mA | |||
MEMORY | ||||
| Store / Recall 100 sets | ||||
TIMER | ||||
| Setting time | 1 sec ~ 255 Min ( Max 255 Min x 100 sets) | |||
| Resolution | 1 sec | |||
| Function | for output working loop ( Auto Step Running) | |||
INTERFACE | ||||
| GPIB Interface Standard | ||||
| POWER SOURCE | ||||
| AC100V/120V/220V/240V±10%, 50/60Hz | ||||
ACCESSORIES | ||||
User Manual X 1, Power Cord X 1 Test Lead GTL-104*1 | ||||
| DIMENSIONS & WEIGHT | ||||
| 255(W) x 145(H) x 346(D)mm Approx. 9.5 kg | ||||
