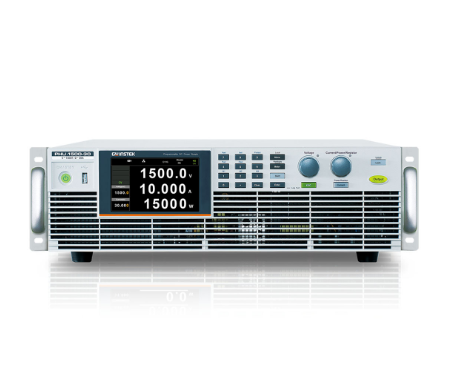

GW INSTEK PHU 80-340 High Power DC Source (80 V, 340A, 10000W)

Rated output voltage: 80 V

Rated output current: 340 A

Rated output power: 10000 W

Output power ratio: 2.72

Constant Voltage Mode

Line regulation [0.01 % of Vo_rated]: 8 mV

Load regulation [0.02 % of Vo_rated]: 16 mV

Ripple and noise (p-p): 200 mV

Ripple and noise (r.m.s.): 16 mV

Temperature coefficient: 100 ppm/°C from rated output voltage, following 30 minutes warm-up.

Remote sense compensation voltage (5 % of Vo_rated): 4 V

Rise time (Rated load): 30 ms

Rise time (No load): 30 ms

Fall time (Rated load): 80 ms

Fall time (No load): 1000 ms

Transient response time: 1.5 ms

Constant Current Mode

Line regulation [0.05 % of Io_rated]: 170 mA

Load regulation [0.1 % of Io_rated]: 340 mA

Ripple and noise (r.m.s.): 340 mA

Temperature coefficient: 100 ppm/°C from rated output current, following 30 minutes warm-up.

Protection Function

Over voltage protection (OVP) - Setting range: 5.00 V to 88.00 V

Over voltage protection (OVP) - Setting accuracy: 80 mV

Over current protection (OCP) - Setting range: 5.00 A to 374.00 A

Over current protection (OCP) - Setting accuracy: 680 mA

Overpower protection (OPP) - Setting range: 200 W to 11000 W

Overpower protection (OPP) - Setting accuracy: 100 W

Over voltage limit (OVL) - Setting range: 0.00 V to 84.00 V

Under voltage limit (UVL) - Setting range: 0.00 V to 84.00 V

Over current limit (OCL) - Setting range: 0.00 A to 357.00 A

Under current limit (UCL) - Setting range: 0.00 A to 357.00 A
