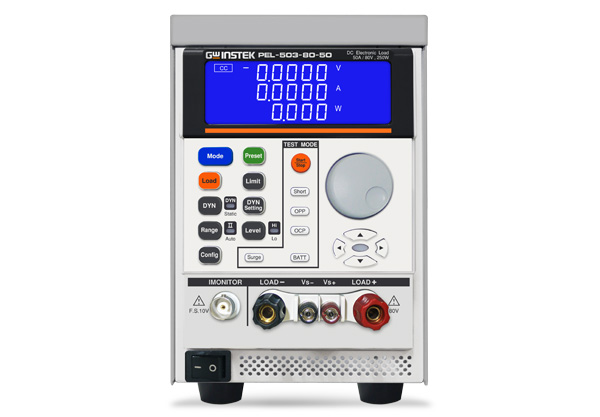

GW INSTEK PEL-503-80-50 DC Electronic Load (250 W, 50 A, 80V)
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelPEL-503-80-50
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power (W): 250 W
Current(Ampere): 50 A
Voltage: 80V
FREQUENCY Range : DC,40~440Hz(CC,CP Mode) , DC~440Hz(LIN,CR,CV Mode)
Constant Current Mode for Sine-Wave
Range: 0~5.04~50.4A
Resolution: 0.3125mA/16bits
Constant Resistance Mode
Range: 0.016~1.6~96000Ω
Resolution: 26.666µΩ/0.010416mSiemens
Constant Voltage Mode
Range: 0~8.1~81V
Resolution: 0.135mV/1.35mV
Constant Power Mode
Range:0~25.02~250.2W
Resolution: 0.417mW/4.17mW
Dimension( H x W x D ): 205 x 123 x 477mm
Weight: 5.3Kg
