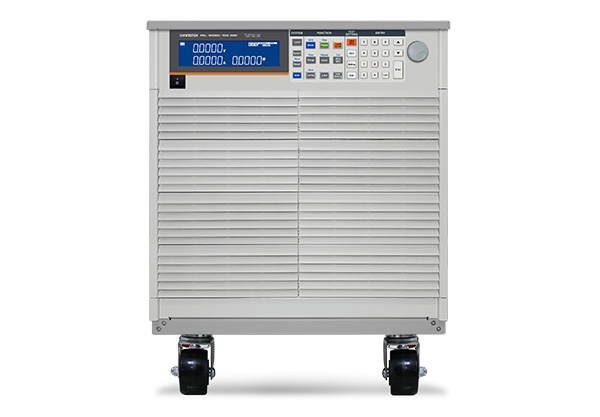

GW INSTEK PEL-5012C-150-1200 High Power Compact DC Load (12kW, 1200A, 150V)

Power: 12kW

Current: 0 ~ 120A/1200A

Voltage: 0 ~ 150V

Min.Operatting Voltage: 0.7V@1200A

Constant Current Mode

Range: 120A/1200A

Resolution: 1.92mA/ 19.2mA

Constant Resistance Mode

Range: 7500Ω ~ 0.125Ω/ 0.125Ω ~ 0.0006Ω

Resolution: 133.333uS/ 2.084uΩ

Constant Voltage Mode

Range: 150V

Resolution: 2.5mV

Constant Power Mode

Range: 1200W/ 12000W

Resolution:19.2mW/ 192mW

Dimension(HxWxD): 572mm x 444mm x 763mm

Weight: 92KG

Optional accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-026 Hook ring

PEL-027 Rack mount kit

PEL-028 Handles

Datasheet
