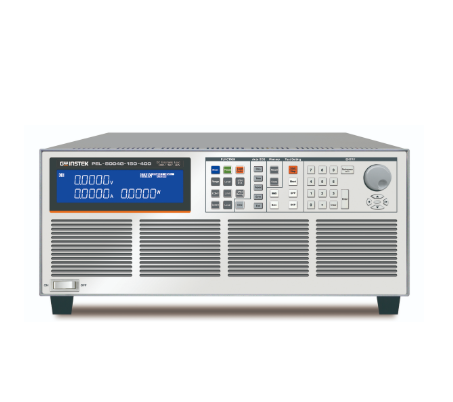

GW INSTEK PEL-5004G-600-280 High Power DC Electronic Load (600 V/280 A/4000 W)

Power: 0~4KW / 0 ~ 6k max.

Current: 0 ~ 280A/ 0 ~ 420A max.

Voltage: 0 ~ 600V

Min.Operatting Voltage: 10V@280A

Protections

Over Power Protection(OPP): 105%

Over Current Protection(OCP): 104%

Over Voltage Protection(OVP): 105%

Over Temp Protection(OTP): 90°C±5°C

Constant Current Mode

Range: 0~28A/ 0~280A

Resolution: 0.448mA /4.48mA

Constant Resistance Mode

Range: 128610Ω ~ 2.1435Ω/ 2.1435Ω ~ 0.0357Ω

Resolution:  8μS / 35.73μΩ

Constant Voltage Mode

Range: 0 ~ 600V

Resolution: 10mV

Constant Power Mode

Range: 0 ~ 400W / 400 ~ 4kW

Resolution:  6.4mW / 64mW

Dimension (HxWxD):  177mm x 440mm x 745mm

Weight: 29KG
