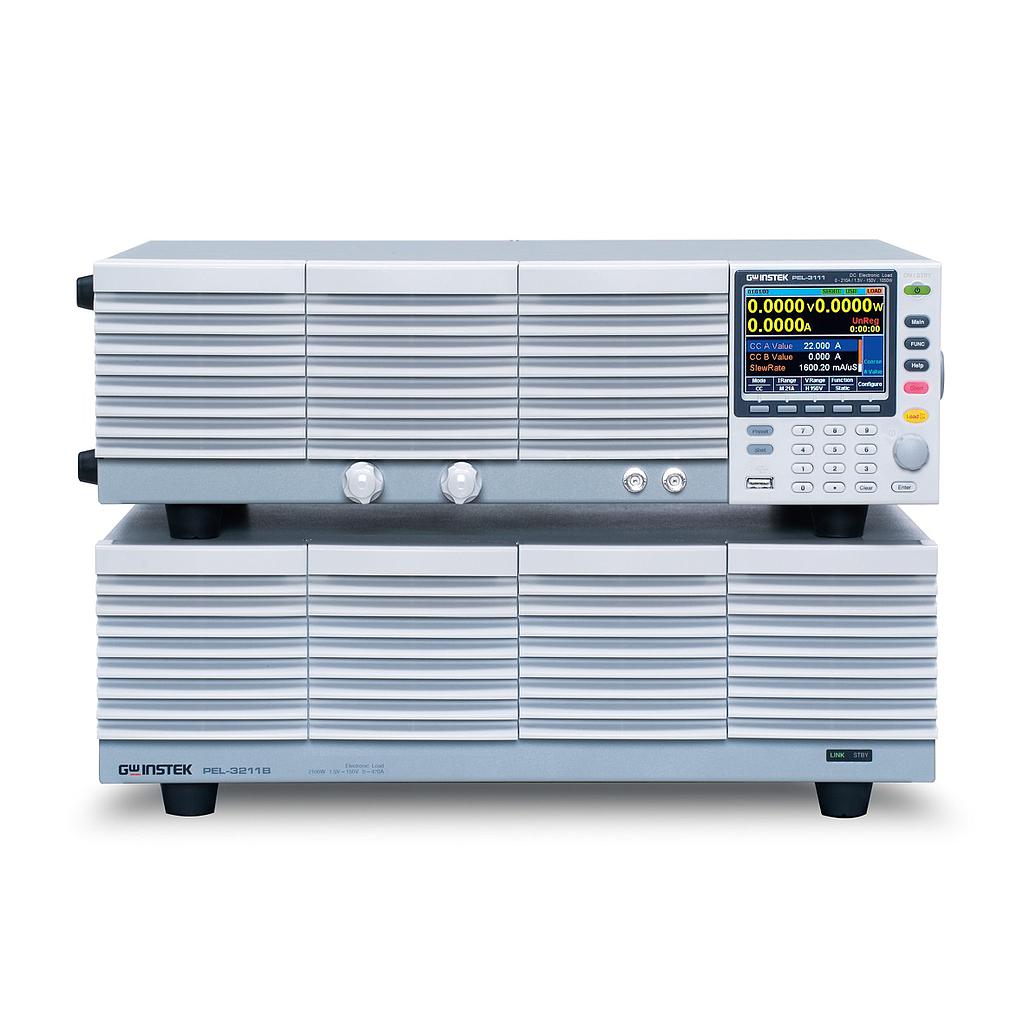

GW INSTEK PEL-3424H DC Electric Load (4200W)

Voltage: 0V～800V

Current 0~210A

Power: 4200W

Input Resistance: 0.81MΩ

CC Mode

Operating Range

H 0~210A

M 0~21A

L 0~2.1A

Accuracy of Setting

H, M ± (0.2 % of set + 0.1 % of f.s*1) + Vin*2/3.24MΩ

L ± (0.2 % of set + 0.1 % of f.s) + Vin*2/3.24MΩ

Resolution

H 8mA

M 0.8mA

L 0.08mA

CR mode

Operating Range

H 42S~0.72mS (23.8095mΩ~1.3889kΩ)

M 4.2S~0.72mS (238.095mΩ~13.8889kΩ)

L 420mS~0.72mS (2.38095Ω~138.888kΩ)

Accuracy of Setting

H, M ± (0.5 % of set*6 + 0.5 % of f.s.*1) + Vin*2/3.24MΩ

L ± (0.5 % of set*6 + 0.5 % of f.s.) + Vin*2/3.24MΩ

Resolution

H 720uS

M 72uS

L 7.2uS

CV mode

Operating Range

H 5V～800V

L 5V～80V

Accuracy of Setting

H, L ± (0.2 % of set + 0.2 % of f.s)

Resolution

H 20mV

L 2mV

CP mode

Operating Range

H 420W~4200W

M 42W~420W

L 4.2W~42W

Setting Range

H 0W~4200W

M 0W~420W

L 0W~42W

Accuracy of Setting

H, M ± (0.6 % of set + 1.4 % of f.s) + Vin*Vin*3/3.24MΩ

L (0.6 % of set + 1.4 % of f.s) + Vin*Vin*3/3.24 MΩ

Resolution

H 400mW

M 40mW

L 4mW

Dimensions (mm) & Weight: 598(W) x 877(H) x 706(D), 110kg
