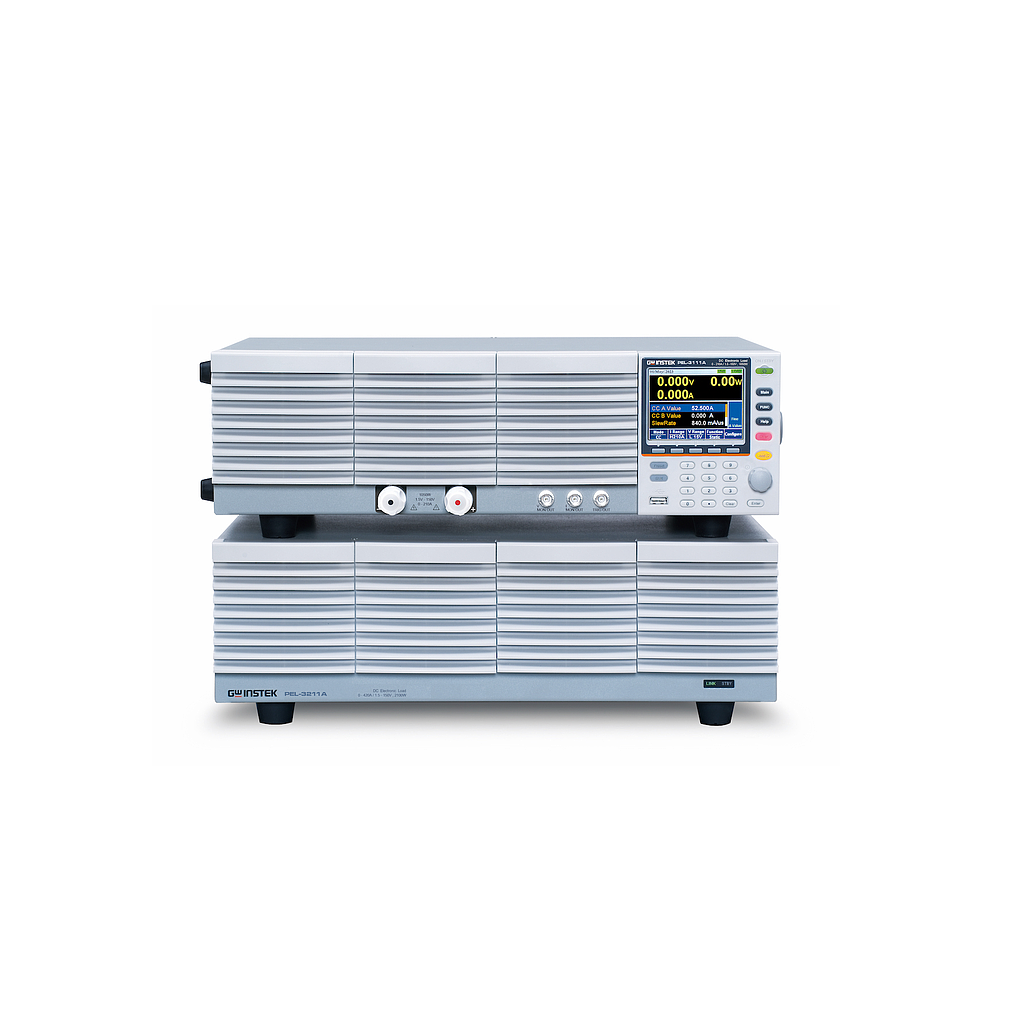

GW INSTEK PEL-3211A Programmable DC Electronic Load (420 A, 0 V~150 V, 2100 W)

Voltage: 0 V to 150 V

Current: 420 A

Power: 2100 W

Input Resistance: 500 kΩ

Min. Operating:

0.75 V at 210 A

1.5 V at 420 A

CONSTANT CURRENT MODE (CC)

Operating Range (H, M, L): 0 A ~ 420 A,  0 A ~ 42 A,  N/A

Accuracy of Setting (H, M): ±(1.2% of set+1.1% of F.S.)

Accuracy of Setting (L): N/A

Accuracy of Setting(Parallel): ±(1.2% of set+1.1% of F.S.)

Resolution (H, M, L): N/A

CONSTANT RESISTANCE MODE (CR)

Operating Range

Range (H):

280.0032 S to 4.8 mS

(3.5714 mΩ to 208.3334 Ω)

Range (M):

28.00032 S to 484.8 μS

(35.7135 mΩ to 2.083334 kΩ)

Accuracy of Setting (H, M): ±(1.2% of set +1.1% of F.S.)

Accuracy of Setting (L): N/A

Parallel: N/A

CONSTANT VOLTAGE MODE (CV)

Operating Range

Range (H): 1.5 V to 150 V

Range (L): 1.5 V to 15 V

CONSTANT POWER MODE (CP)

Operating Range

Range (H): 210 W to 2100 W

Range (M): 21 W to 210 W

GENERAL

Input Range:90 Vac to 132 Vac/180 Vac to 250 Vac Single-phase; 47 Hz to 63 Hz

Power(Max.):230 VA

Interface: N/A

Dimensions (W x H x D): 427.7 mm x 127.8 mm x 553.5 mm

Weight: Approximate 23 kg
